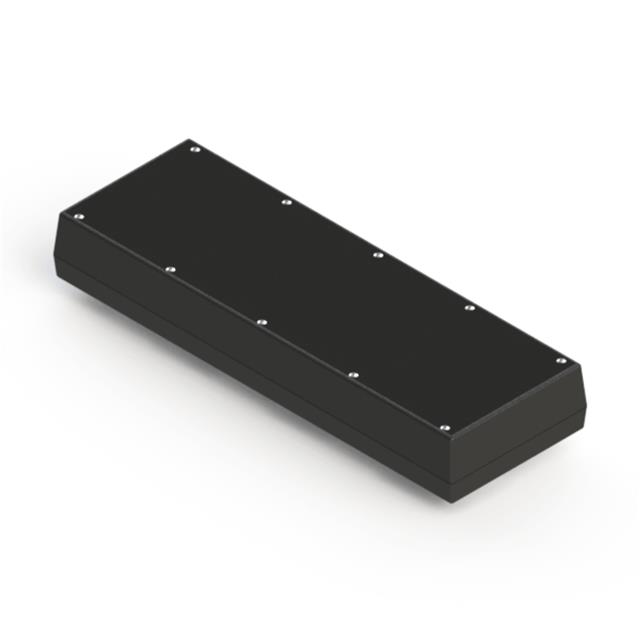

182RI,BK

Active

Serpac

BOX ABS BLACK 14.21"L X 4.88"W

Search across all available documentation for this part.

Active

Serpac

BOX ABS BLACK 14.21"L X 4.88"W

Technical Specifications

Parameters and characteristics for this part

Specification	182RI,BK

Area (L x W)	69.3 in²
Area (L x W)	447 cm²
Color	Black
Container Type	Box
Design	Split Sides, Hand Held
Features	Front Access, PCB Supports
Height [z]	50.8 mm
Height [z]	2 in
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP40, NEMA 1
Size / Dimension [x]	14.21 in
Size / Dimension [x]	360.93 mm
Size / Dimension [y]	123.95 mm
Size / Dimension [y]	4.88 in
Thickness	2.54 mm
Thickness	0.1 in
Weight	420.93 g
Weight	0.928 lb

Part	Ratings	Height [z]	Height [z]	Container Type	Design	Material	Color	Area (L x W)	Area (L x W)	Features	Thickness	Thickness	Material Flammability Rating	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Weight	Weight
Serpac 182RI,GY	IP40 NEMA 1	50.8 mm	2 in	Box	Hand Held Split Sides	Plastic ABS	Gray	69.3 in²	447 cm²	Front Access PCB Supports	2.54 mm	0.1 in	UL94 HB	14.21 in	123.95 mm	360.93 mm	4.88 in	420.93 g	0.928 lb
Serpac 182RI,AL	IP40 NEMA 1	50.8 mm	2 in	Box	Hand Held Split Sides	Plastic ABS	Almond	69.3 in²	447 cm²	Front Access PCB Supports	2.54 mm	0.1 in	UL94 HB	14.21 in	123.95 mm	360.93 mm	4.88 in	420.93 g	0.928 lb
Serpac 182RI,BK	IP40 NEMA 1	50.8 mm	2 in	Box	Hand Held Split Sides	Plastic ABS	Black	69.3 in²	447 cm²	Front Access PCB Supports	2.54 mm	0.1 in	UL94 HB	14.21 in	123.95 mm	360.93 mm	4.88 in	420.93 g	0.928 lb
Serpac 182R,AL	IP40 NEMA 1	50.8 mm	2 in	Box	Hand Held Split Sides	Plastic ABS	Almond	69.3 in²	447 cm²	Front Access PCB Supports	2.54 mm	0.1 in	UL94 HB	14.21 in	123.95 mm	360.93 mm	4.88 in	420.93 g	0.928 lb
Serpac 182R,BK	IP40 NEMA 1	50.8 mm	2 in	Box	Hand Held Split Sides	Plastic ABS	Black	69.3 in²	447 cm²	Front Access PCB Supports	2.54 mm	0.1 in	UL94 HB	14.21 in	123.95 mm	360.93 mm	4.88 in	420.93 g	0.928 lb
Serpac 182R,GY	IP40 NEMA 1	50.8 mm	2 in	Box	Hand Held Split Sides	Plastic ABS	Gray	69.3 in²	447 cm²	Front Access PCB Supports	2.54 mm	0.1 in	UL94 HB	14.21 in	123.95 mm	360.93 mm	4.88 in	420.93 g	0.928 lb

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Box Plastic, ABS Black Hand Held, Split Sides 14.210" L x 4.880" W (360.93mm x 123.95mm) X 2.000" (50.80mm)
