BM13B-GHS-TBT

Active

JST Sales America Inc.

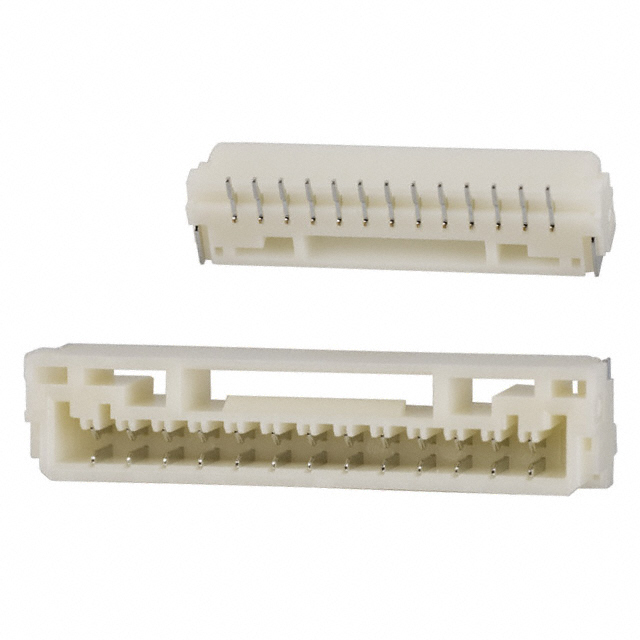

CONN HEADER SMD 13POS 1.25MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN HEADER SMD 13POS 1.25MM

Technical Specifications

Parameters and characteristics for this part

Specification	BM13B-GHS-TBT

Connector Type	Header
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Contact Shape	Rectangular
Contact Type	Outer Shroud Contact
Fastening Type	Locking Ramp
Features	Pick and Place, Solder Retention
Insulation Color	Natural
Insulation Height	4.05 mm
Insulation Height	0.159 in
Insulation Material	Polyamide (PA9T), Nylon 9T
Mated Stacking Heights	7.3 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	13
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch - Mating	1.25 mm
Pitch - Mating	0.049 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	50 V

Part	Fastening Type	Connector Type	Contact Shape	Material Flammability Rating	Voltage Rating	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Insulation Height	Insulation Height	Contact Material	Number of Positions Loaded	Number of Positions	Mounting Type	Contact Type	Features	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Material	Termination	Insulation Color	Mated Stacking Heights	Style	Shrouding	Number of Rows
JST Sales America Inc. BM13B-GHS-TBT	Locking Ramp	Header	Rectangular	UL94 V-0	50 V	1.25 mm	0.049 in	Tin	4.05 mm	0.159 in	Phosphor Bronze	All	13	Surface Mount	Outer Shroud Contact	Pick and Place Solder Retention	-25 °C	85 °C	Nylon 9T Polyamide (PA9T)	Solder	Natural	7.3 mm	Board to Cable/Wire	Shrouded - 4 Wall	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Surface Mount 13 position 0.049" (1.25mm)
