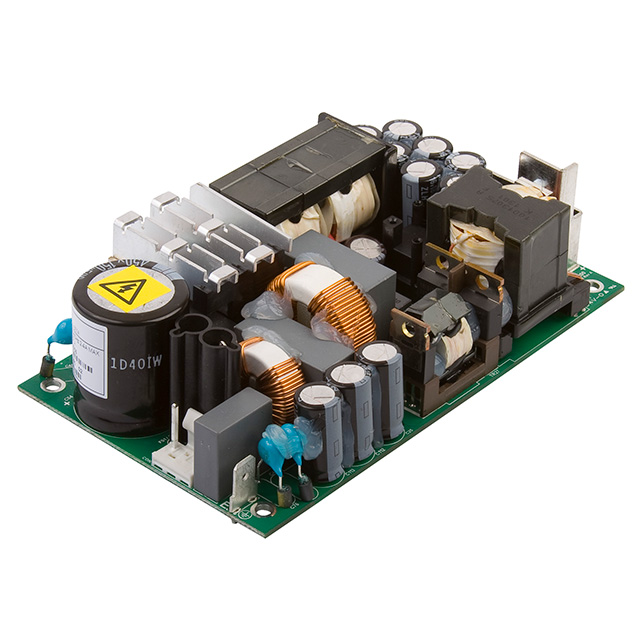

CCB200PS28
ActiveXP POWER
AC/DC CONVERTER 28V 199W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CCB200PS28
ActiveXP POWER
AC/DC CONVERTER 28V 199W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CCB200PS28 |
|---|---|
| Applications | ITE (Commercial), Medical |
| Approval Agency | UL, TUV, CB |
| Current - Output 1 | 7.1 A |
| Efficiency | 95 % |
| Features | Standby Output, Universal Input, PFC, Adjustable Output, Remote On/Off, Remote Sense |
| Minimum Load Required | False |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Power (Watts) | 199 W |
| Size / Dimension [x] | 127 mm |
| Size / Dimension [x] | 5 in |
| Size / Dimension [y] | 3 " |
| Size / Dimension [y] | 76.2 mm |
| Size / Dimension [z] | 1.43 in |
| Size / Dimension [z] | 36.3 mm |
| Standard Number | 62368-1 |
| Type | Open Frame |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 80 VAC |
| Voltage - Isolation | 4000 V |
| Voltage - Output 1 | 28 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 179.22 | |
| 5 | $ 173.84 | |||
| 10 | $ 168.47 | |||
| 25 | $ 161.30 | |||
| 100 | $ 150.54 | |||
Description
General part information
CCB200 Series
Open Frame AC DC Converters 1 Output 28V 80 ~ 264 VAC Input
