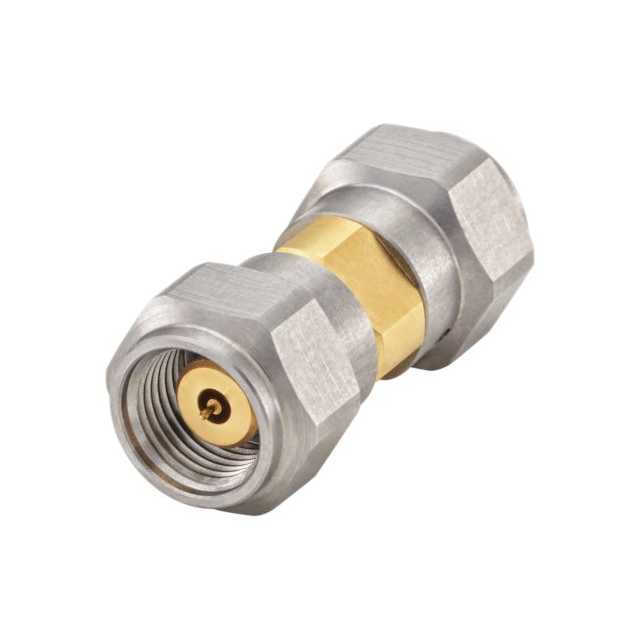

P9S121-S00D3
ActiveRosenberger
CONN ADAPT RF M-M RPC-1.35MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
P9S121-S00D3
ActiveRosenberger
CONN ADAPT RF M-M RPC-1.35MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | P9S121-S00D3 |
|---|---|
| Adapter Series | RPC-1.35 to RPC-1.35 |
| Adapter Type | Plug to Plug |
| Body Finish | Gold |
| Body Material | Beryllium Copper |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Center Gender | Male to Male |
| Conversion Type | Same Series |
| Convert From (Adapter End) | 1.35 mm |
| Convert To (Adapter End) | Male Pin, 1.35mm Plug |
| Dielectric Material | Polyetheretherketone (PEEK) |
| Frequency - Max [Max] | 90 GHz |
| Mating Cycles | 3000 |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Style | Straight |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 5 | $ 705.70 | |
Description
General part information
P9S121 Series
Adapter Coaxial Connector 1.35mm Plug, Male Pin To 1.35mm Plug, Male Pin
