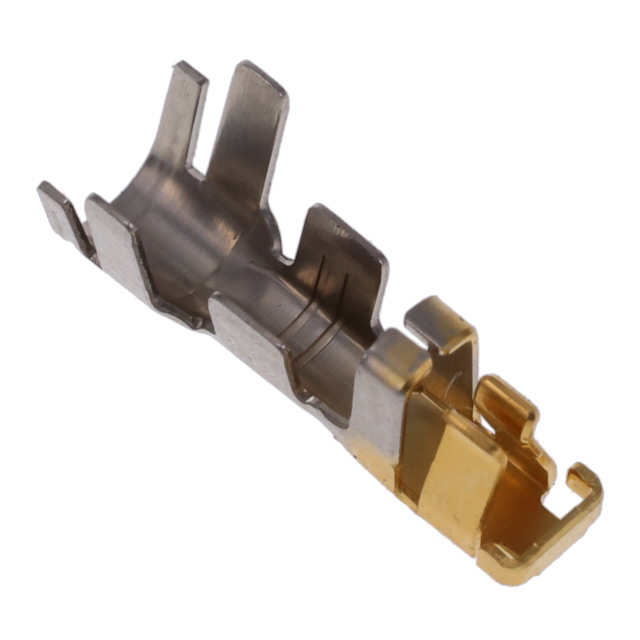

DF63SF-1618SCFA(05)

Active

Hirose Electric USA, Inc.

CONN CRIMP SKT 16-18AWG

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

CONN CRIMP SKT 16-18AWG

Technical Specifications

Parameters and characteristics for this part

Part	Pin or Socket	Type	Contact Finish	Contact Termination	Contact Finish Thickness	Contact Finish Thickness	Wire Gauge [Min]	Wire Gauge [Max]	Contact Type	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Current Rating (Amps)	Contact Finish - Post	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Contact Finish - Mating	Contact Length - Post [x]	Contact Length - Post [x]	Contact Material	Fastening Type	Number of Rows	Insulation Material	Number of Positions	Termination	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Shape	Number of Positions Loaded	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Style	Voltage Rating	Insulation Height	Insulation Height	Insulation Color	Shrouding
Hirose Electric USA, Inc. DF63SF-1618SCFA(05)	Socket	Stamped	Gold	Crimp	0.76 Ám	30 Áin	16 AWG	18 AWG
Hirose Electric USA, Inc. DF63SF-2P-7.92TV(52)									Male Blade	Through Hole	30 Áin	0.76 Ám	Varies by Wire Gauge	Gold	105 ░C	-55 °C	Header	Gold	0.055 in	1.4 mm	Copper Alloy	Detent Lock	1	Liquid Crystal Polymer (LCP)	2	Solder	0.05 µm	1.97 µin	Rectangular	All	UL94 V-0	0.312 in	7.92 mm	Board to Cable/Wire	630 VAC/DC	0.335 "	8.5 mm	Black	Shrouded - 3 Wall
Hirose Electric USA, Inc. DF63SF-1618SCFA	Socket	Stamped	Gold	Crimp	0.2 µm	7.87 µin	16 AWG	18 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Socket Contact Gold 16-18 AWG Crimp Stamped
