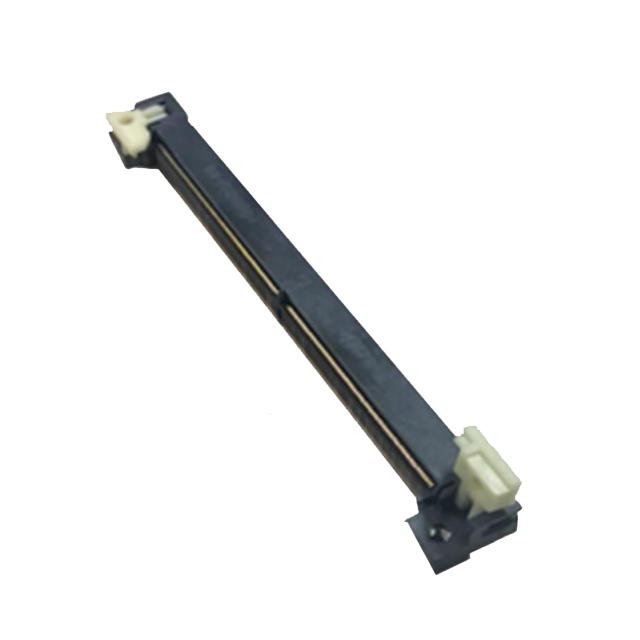

CNU113-314-2201-VE
ActiveYamaichi Electronics
CONN EDGE DUAL FML 314POS 0.020
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CNU113-314-2201-VE |
|---|---|
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold-Nickel |
| Contact Material | Copper Alloy |
| Features | Board Guide |
| Gender | Female |
| Material - Insulation | Liquid Crystal Polymer (LCP) |
| Mounting Type | Surface Mount |
| Number of Positions | 314 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.5 mm |
| Pitch [x] | 0.02 in |
| Read Out | Dual |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
CNU113 Series
314 Position Female Connector Non Specified - Dual Edge Gold-Nickel 0.020" (0.50mm) Black
Documents
Technical documentation and resources
No documents available
