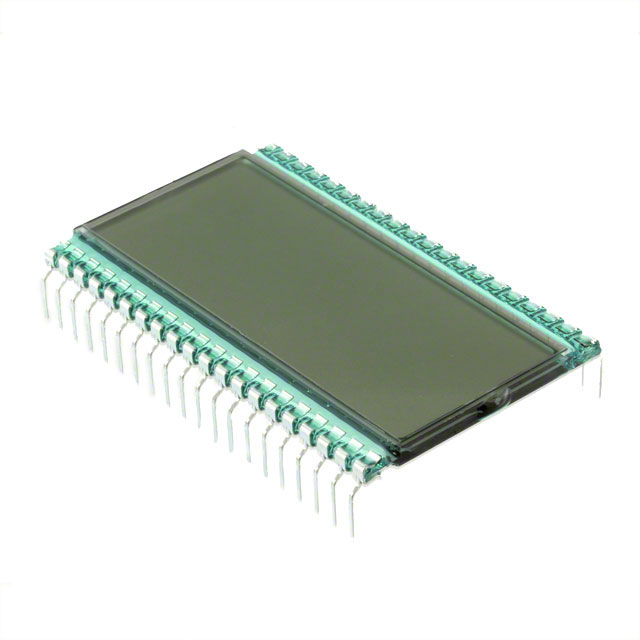

LCD-A3X1C50TR/A
ActiveLumex Opto/Components Inc.
LCD MOD 4 DIG 3.5 X 1 REFLECTIVE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LCD-A3X1C50TR/A
ActiveLumex Opto/Components Inc.
LCD MOD 4 DIG 3.5 X 1 REFLECTIVE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LCD-A3X1C50TR/A |
|---|---|
| Background Color | Gray |
| Backlight | Without Backlight |
| Character Format | 7-Segment |
| Display Format [x] | 3.5 |
| Display Format [y] | 1 |
| Display Mode | Reflective |
| Display Type | TN - Twisted Nematic |
| Interface | Parallel |
| Number of Characters | 4 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Outline L x W x H [x] | 50.8 mm |
| Outline L x W x H [y] | 30.48 mm |
| Outline L x W x H [z] | 2.5 mm |
| Text Color | Black |
| Viewing Area [x] | 45.72 mm |
| Viewing Area [y] | 16.51 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
LCD-A3 Series
Character Display Module Reflective 7-Segment TN - Twisted Nematic Without Backlight Parallel 50.80mm x 30.48mm x 2.50mm
