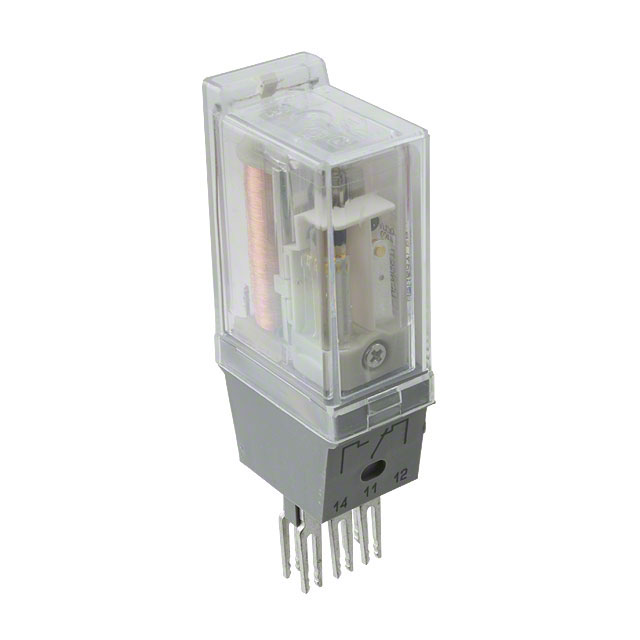

2821012
ObsoletePhoenix Contact
RELAY CONNECTOR, SPDT, 24VDC ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2821012
ObsoletePhoenix Contact
RELAY CONNECTOR, SPDT, 24VDC ROHS COMPLIANT: YES
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 2821012 |
|---|---|
| Approval Agency | EAC |
| Coil Current | 21 mA |
| Coil Resistance | 114.3 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 24 VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Contact Rating (Current) | 6 A |
| Mounting Type | Socketable |
| Operate Time | 15 ms |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -20 C |
| Relay Type | General Purpose |
| Release Time | 25 ms |
| Switching Voltage | 250 VAC, 250 VDC |
| Termination Style | Plug In |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Newark | Each | 1 | $ 127.89 | |
| 10 | $ 122.15 | |||
| 50 | $ 117.12 | |||
| 100 | $ 109.21 | |||
| 250 | $ 100.59 | |||
Description
General part information
28210 Series
General Purpose Relay SPDT (1 Form C) 24VDC Coil Socketable
