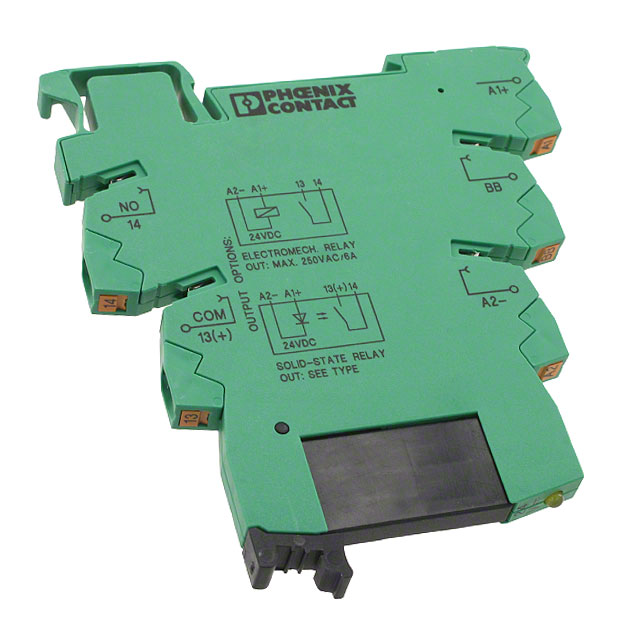

2900358

Active

Phoenix Contact

RELAY SSR 8.5MA 28.8V DC-IN 0.1A 48V DC-OUT

Search across all available documentation for this part.

Active

Phoenix Contact

RELAY SSR 8.5MA 28.8V DC-IN 0.1A 48V DC-OUT

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Load [Max]	Voltage - Load [Min]	Voltage - Input	Mounting Type	Termination Style	Package / Case	Output Type	Load Current	Approval Agency	Operating Temperature [Min]	Operating Temperature [Max]
Phoenix Contact 2900359	48 V	3 V	120 VAC	DIN Rail	Spring Terminal	Module	DC	100 mA	CE DNV UKCA	-25 °C	60 °C
Phoenix Contact 2900352	48 V	3 V	24 V	DIN Rail	Spring Terminal	Module	DC	100 mA	CE UKCA	-25 °C	60 °C
Phoenix Contact 2900355	48 V	3 V	120 VAC	DIN Rail	Spring Terminal	Module	DC	100 mA	cULus DNV EAC UL	-25 °C	60 °C
Phoenix Contact 2900354	48 V	3 V	60 VDC	DIN Rail	Spring Terminal	Module	DC	100 mA	CE UKCA	-25 °C	60 °C
Phoenix Contact 2900358	48 V	3 V	24 V	DIN Rail	Spring Terminal	Module	DC	100 mA	CE DNV UKCA	-25 °C	60 °C
Phoenix Contact 2900356	48 V	3 V	230 VAC	DIN Rail	Spring Terminal	Module	DC	100 mA	CE DNV UKCA	-25 °C	60 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 27.66

General part information

Solid State SPST-NO (1 Form A) Module
