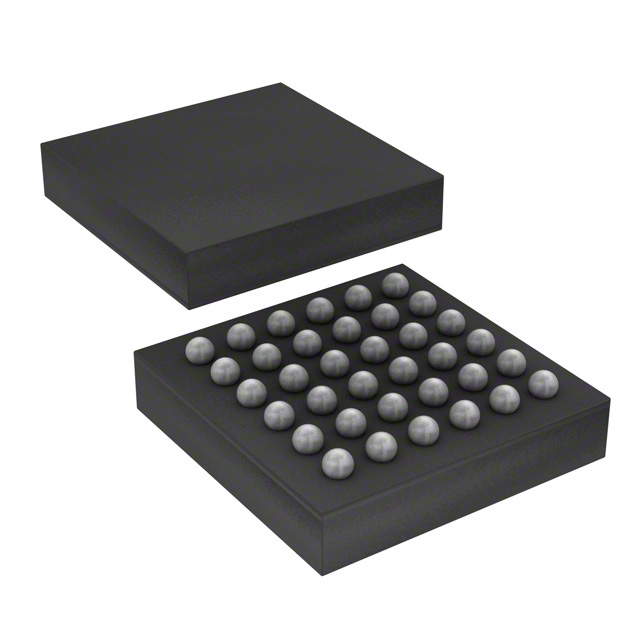

WM8904ECS/R
ActiveCirrus Logic Inc.
AUDIO CODEC 2ADC /2 DAC 24-BIT 36-PIN WCSP T/R
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
WM8904ECS/R
ActiveCirrus Logic Inc.
AUDIO CODEC 2ADC /2 DAC 24-BIT 36-PIN WCSP T/R
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | WM8904ECS/R |
|---|---|
| Mounting Type | Surface Mount |
| Number of ADCs / DACs [custom] | 2 |
| Number of ADCs / DACs [custom] | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 36-UFBGA, WLCSP |
| S/N Ratio, ADCs / DACs (db) Typ [custom] | 91 db |
| S/N Ratio, ADCs / DACs (db) Typ [custom] | 96 db |
| Sigma Delta | True |
| Supplier Device Package | 36-WCSP |
| Supplier Device Package [x] | 2.65 |
| Supplier Device Package [y] | 2.53 |
| Type | Stereo Audio |
| Voltage - Supply, Analog [Max] | 2 V |
| Voltage - Supply, Analog [Min] | 1.71 V |
| Voltage - Supply, Digital [Max] | 3.6 V |
| Voltage - Supply, Digital [Min] | 1.42 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 6.01 | |
| 10 | $ 5.43 | |||
| 25 | $ 5.18 | |||
| 100 | $ 4.49 | |||
| 250 | $ 4.29 | |||
| 500 | $ 3.91 | |||
| 1000 | $ 3.41 | |||
| Digi-Reel® | 1 | $ 6.01 | ||
| 10 | $ 5.43 | |||
| 25 | $ 5.18 | |||
| 100 | $ 4.49 | |||
| 250 | $ 4.29 | |||
| 500 | $ 3.91 | |||
| 1000 | $ 3.41 | |||
| Tape & Reel (TR) | 3500 | $ 3.28 | ||
Description
General part information
WM8904 Series
3.0mW quiescent power consumption for DAC to headphone playback
2.4mW quiescent power consumption for analog bypass playback
DAC SNR 96dB typical, THD -86dB typical
