JKXER0G07FPSDPR

Active

Souriau-Sunbank by Eaton

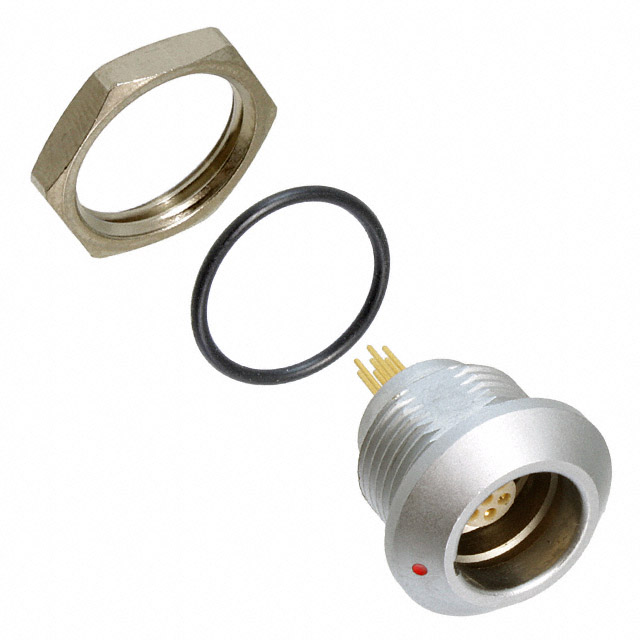

CONN RCPT FMALE 7POS GOLD SOLDER

Search across all available documentation for this part.

Active

Souriau-Sunbank by Eaton

CONN RCPT FMALE 7POS GOLD SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	JKXER0G07FPSDPR

Applications	Audio, Instrumentation, Video, Medical, Telecommunications
Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	0.5 µm
Contact Finish Thickness - Mating	19.7 µin
Current Rating (Amps)	2.5 A
Fastening Type	Push-Pull
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Polyetheretherketone (PEEK)
Mounting Feature	Bulkhead - Rear Side Nut
Mounting Type	Through Hole, Panel Mount
Number of Positions	7
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-50 °C
Orientation	G
Primary Material	Metal
Shell Finish	Chrome over Nickel
Shell Material	Brass
Shell Size - Insert	0
Shielding	Shielded
Termination	Solder

Part	Primary Material	Connector Type	Contact Finish - Mating	Fastening Type	Current Rating (Amps)	Shell Material	Ingress Protection	Orientation	Shell Size - Insert	Shell Finish	Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Feature	Shielding	Applications	Insert Material	Number of Positions	Termination	Mounting Type
Souriau-Sunbank by Eaton JKXER0G04FSSDSR	Metal	Receptacle Female Sockets	Gold	Push-Pull	7 A	Brass	IP68 - Dust Tight Waterproof	G	0	Chrome over Nickel	Silver	0.5 µm	19.7 µin	-50 °C	125 °C	Bulkhead - Rear Side Nut	Shielded	Audio Instrumentation Medical Telecommunications Video	Polyphenylene Sulfide (PPS)	4
Souriau-Sunbank by Eaton JKXER0G07FPSDPR	Metal	Receptacle Female Sockets	Gold	Push-Pull	2.5 A	Brass	IP68 - Dust Tight Waterproof	G	0	Chrome over Nickel	Silver	0.5 µm	19.7 µin	-50 °C	125 °C	Bulkhead - Rear Side Nut	Shielded	Audio Instrumentation Medical Telecommunications Video	Polyetheretherketone (PEEK)	7	Solder	Panel Mount Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

7 Position Circular Connector Receptacle, Female Sockets Solder

Technical documentation and resources

No documents available
