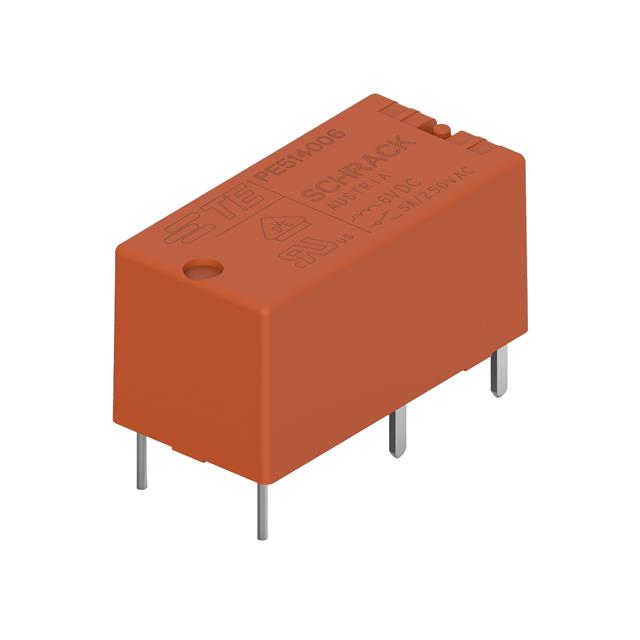

1-1393219-8

Active

TE Connectivity Potter & Brumfield Relays

PE514006

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1-1393219-8

Active

TE Connectivity Potter & Brumfield Relays

PE514006

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1-1393219-8

Approval Agency	cURus, VDE
Coil Current	34.9 mA
Coil Resistance	172 Ohms
Coil Type	Non Latching
Contact Form	SPDT (1 Form C)
Contact Material	Silver Nickel (AgNi)
Contact Rating (Current)	5 A
Load - Max Switching	2000 VA
Mounting Type	Through Hole
Must Operate Voltage	4.5 VDC
Must Release Voltage	0.6 VDC
Operate Time	8 ms
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	8 ms
Seal Rating	Sealed - Fully
Switching Voltage [Max]	400 VAC
Termination Style	PC Pin

1393219 Series

Part	Contact Form	Switching Voltage [Max]	Must Release Voltage	Relay Type	Contact Material	Contact Rating (Current)	Coil Current	Operate Time	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Load - Max Switching	Coil Voltage	Release Time	Seal Rating	Coil Type	Coil Resistance	Mounting Type	Must Operate Voltage	Termination Style
TE Connectivity Potter & Brumfield Relays PE014024	SPDT (1 Form C)	400 VAC	2.4 VDC	General Purpose	Silver Nickel (AgNi)	5 A	8.8 mA	8 ms	cURus VDE	85 °C	-40 °C	2000 VA	24 VDC	8 ms	Sealed - Flux Protection	Non Latching	2.73 kOhms	Through Hole	18 VDC	PC Pin
TE Connectivity Potter & Brumfield Relays PE514005	SPDT (1 Form C)	400 VAC	0.5 VDC	General Purpose	Silver Nickel (AgNi)	5 A	40 mA	8 ms	cURus VDE	85 °C	-40 °C	2000 VA	5 VDC	8 ms	Sealed - Fully	Non Latching	125 Ohms	Through Hole	3.8 VDC	PC Pin
TE Connectivity Potter & Brumfield Relays PE014006	SPDT (1 Form C)	400 VAC	0.6 VDC	General Purpose	Silver Nickel (AgNi)	5 A	34.8 mA	8 ms	cURus VDE	85 °C	-40 °C	2000 VA		8 ms	Sealed - Flux Protection	Non Latching	172 Ohms	Through Hole	4.5 VDC	PC Pin
TE Connectivity Potter & Brumfield Relays 1-1393219-6	SPDT (1 Form C)	400 VAC	4.8 VDC	General Purpose	Silver Nickel (AgNi)	5 A	4.4 mA	8 ms	cURus VDE	85 °C	-40 °C	2000 VA	48 VDC	8 ms		Non Latching	10.97 kOhms	Through Hole	36 VDC	PC Pin
TE Connectivity Potter & Brumfield Relays 1-1393219-2	SPDT (1 Form C)	400 VAC	3.6 VDC	General Purpose	Silver Nickel (AgNi)	5 A	5.8 mA	8 ms	cURus VDE	85 °C	-40 °C	2000 VA	36 VDC	8 ms	Sealed - Flux Protection	Non Latching	6.17 kOhms	Through Hole	27 VDC	PC Pin
TE Connectivity Potter & Brumfield Relays 1-1393219-8	SPDT (1 Form C)	400 VAC	0.6 VDC	General Purpose	Silver Nickel (AgNi)	5 A	34.9 mA	8 ms	cURus VDE	85 °C	-40 °C	2000 VA		8 ms	Sealed - Fully	Non Latching	172 Ohms	Through Hole	4.5 VDC	PC Pin
TE Connectivity Potter & Brumfield Relays 1393219-8	SPDT (1 Form C)	400 VAC		General Purpose	Silver Nickel (AgNi)	5 A	11.7 mA	8 ms	cURus VDE	85 °C	-40 °C	2000 VA	18 VDC	8 ms	Sealed - Flux Protection	Non Latching	1.545 kOhms	Through Hole		PC Pin
TE Connectivity Potter & Brumfield Relays PE014048	SPDT (1 Form C)	400 VAC	4.8 VDC	General Purpose	Silver Nickel (AgNi)	5 A	4.4 mA	8 ms	cURus VDE	85 °C	-40 °C	2000 VA	48 VDC	8 ms	Sealed - Flux Protection	Non Latching	10.97 kOhms	Through Hole	36 VDC	PC Pin
TE Connectivity Potter & Brumfield Relays 1393219-5	SPDT (1 Form C)	400 VAC	0.9 VDC	General Purpose	Silver Nickel (AgNi)	5 A	22.2 mA	8 ms	cURus VDE	85 °C	-40 °C	2000 VA	9 VDC	8 ms		Non Latching	405 Ohms	Through Hole	6.8 VDC	PC Pin
TE Connectivity Potter & Brumfield Relays 2-1393219-2	SPDT (1 Form C)	400 VAC	2.4 VDC	General Purpose	Silver Nickel (AgNi)	5 A	8.8 mA	8 ms	cURus VDE	85 °C	-40 °C	2000 VA	24 VDC	8 ms	Sealed - Fully	Non Latching	2.73 kOhms	Through Hole	18 VDC	PC Pin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1000	$ 2.80

Description

General part information

1393219 Series

General Purpose Relay SPDT (1 Form C) 6VDC Coil Through Hole

Documents

Technical documentation and resources
