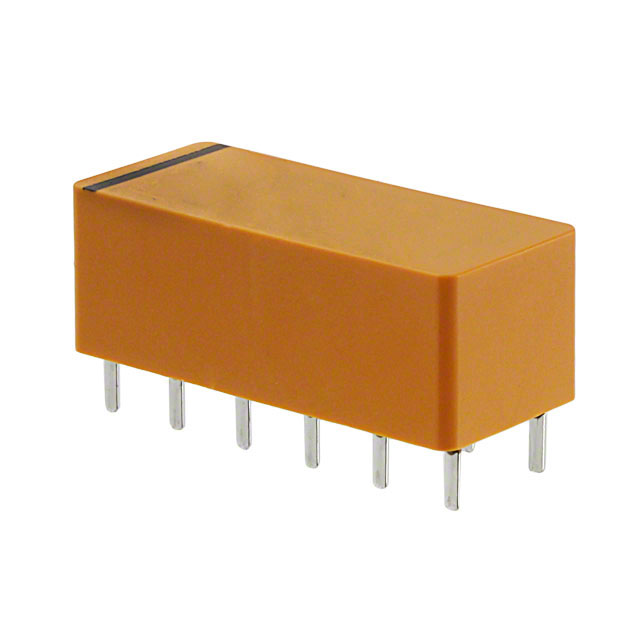

S4EB-48V
ActivePanasonic Electric Works
RELAY GEN PURPOSE 4PST 4A 48V
Deep-Dive with AI
Search across all available documentation for this part.
S4EB-48V
ActivePanasonic Electric Works
RELAY GEN PURPOSE 4PST 4A 48V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | S4EB-48V |
|---|---|
| Approval Agency | CSA, UR |
| Coil Resistance | 8.5 kOhms |
| Coil Type | Non Latching |
| Coil Voltage | 48 VDC |
| Contact Form | 4PST-NO (4 Form A) |
| Contact Material | Silver Alloy, Cadmium Free |
| Contact Rating (Current) | 4 A |
| Load - Max Switching | 1000 VA, 192 W |
| Mounting Type | Through Hole |
| Must Operate Voltage | 33.6 VDC |
| Must Release Voltage | 4.8 VDC |
| Operate Time | 15 ms |
| Operating Temperature [Max] | 65 °C |
| Operating Temperature [Min] | -55 °C |
| Relay Type | General Purpose |
| Release Time | 10 ms |
| Seal Rating | Sealed - Fully |
| Switching Voltage | 48 VDC, 250 VAC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 50 | $ 16.11 | |
Description
General part information
S4EB-4 Series
General Purpose Relay 4PST-NO (4 Form A) 48VDC Coil Through Hole
