K22K0C-P05NPH0-600S

Active

ODU

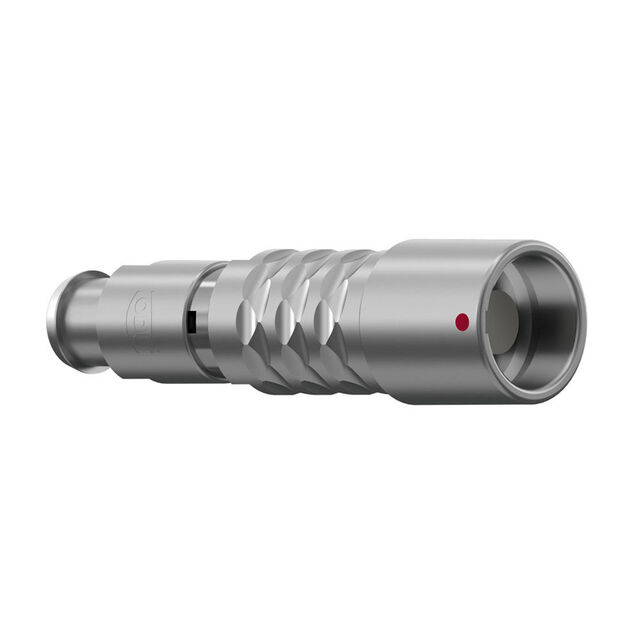

ODU MINI-SNAP RECEPT, INLINE, ST

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

K22K0C-P05NPH0-600S

Active

ODU

ODU MINI-SNAP RECEPT, INLINE, ST

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	K22K0C-P05NPH0-600S

Applications	Military, Medical, Industrial, Testing Equipment & Measurement
Backshell Material, Plating	Brass, Chrome over Nickel
Cable Opening [Max] [custom]	0.236 in
Cable Opening [Max] [custom]	6 mm
Cable Opening [Min] [custom]	0.217 in
Cable Opening [Min] [custom]	5.5 mm
Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	12 A
Fastening Type	Push-Pull
Features	Strain Relief, Backshell
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Polyetheretherketone (PEEK)
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-40 °C
Orientation	0
Primary Material	Metal
Shell Finish	Chrome over Nickel
Shell Material	Brass
Shell Size - Insert	2
Shielding	Shielded
Termination	Crimp
Voltage Rating	600 V

K22K0C-P Series

Part	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [diameter]	Connector Type	Applications	Mounting Type	Contact Finish - Mating	Ingress Protection	Current Rating (Amps)	Insert Material	Termination	Fastening Type	Features	Color	Shell Size - Insert	Backshell Material, Plating	Voltage Rating	Shell Material	Shell Finish	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	Primary Material	Contact Material	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [custom]	Cable Opening [custom]	Number of Positions
ODU K22K0C-P07PPL0-800S	7 mm	0.276 in 0.315 in	8 mm	Receptacle Female Sockets	Industrial Medical Military Testing Equipment & Measurement	Free Hanging (In-Line)	Gold	IP68 - Dust Tight Waterproof	15 A	Polyetheretherketone (PEEK)	Crimp	Push-Pull	Backshell Strain Relief	Silver	2	Brass Chrome over Nickel	366 V	Brass	Chrome over Nickel	7	-40 °C	120 °C	Shielded	Metal	Brass
ODU K22K0C-P02LTS0-600S				Receptacle Female Sockets	Industrial Medical Military Testing Equipment & Measurement	Free Hanging (In-Line)	Gold	IP68 - Dust Tight Waterproof	24 A	Polyetheretherketone (PEEK)		Push-Pull	Backshell Strain Relief	Silver	2	Brass Chrome over Nickel	600 V	Brass	Chrome over Nickel	2	-40 °C	120 °C	Shielded	Metal	Brass	0.217 in	0.236 in	6 mm	5.5 mm
ODU K22K0C-PD8NJG0-700S				Receptacle Female Sockets	Industrial Medical Military Testing Equipment & Measurement	Free Hanging (In-Line)	Gold	IP68 - Dust Tight Waterproof	7.5 A	Polyetheretherketone (PEEK)	Crimp	Push-Pull	Backshell Strain Relief	Silver	2	Brass Chrome over Nickel	500 V	Brass	Chrome over Nickel	8	-40 °C	120 °C	Shielded	Metal	Brass	0.256 in	0.276 in		6.5 mm	7 mm
ODU K22K0C-P05NPH0-600S				Receptacle Female Sockets	Industrial Medical Military Testing Equipment & Measurement	Free Hanging (In-Line)	Gold	IP68 - Dust Tight Waterproof	12 A	Polyetheretherketone (PEEK)	Crimp	Push-Pull	Backshell Strain Relief	Silver	2	Brass Chrome over Nickel	600 V	Brass	Chrome over Nickel		-40 °C	120 °C	Shielded	Metal	Brass	0.217 in	0.236 in	6 mm	5.5 mm
ODU K22K0C-P10NJH0-450S				Receptacle Female Sockets	Industrial Medical Military Testing Equipment & Measurement	Free Hanging (In-Line)	Gold	IP68 - Dust Tight Waterproof	10 A	Polyetheretherketone (PEEK)	Crimp	Push-Pull	Backshell Strain Relief	Silver	2	Brass Chrome over Nickel	300 VDC	Brass	Chrome over Nickel	10	-40 °C	120 °C	Shielded	Metal	Brass	0.157 in	0.177 in		4 mm	4.5 mm
ODU K22K0C-P26LCC0-650S				Receptacle Female Sockets	Industrial Medical Military Testing Equipment & Measurement	Free Hanging (In-Line)	Gold	IP68 - Dust Tight Waterproof	4 A	Polyetheretherketone (PEEK)		Push-Pull	Backshell Strain Relief	Silver	2	Brass Chrome over Nickel	300 VDC	Brass	Chrome over Nickel	26	-40 °C	120 °C	Shielded	Metal	Brass						0.236 in 0.256 in	6 mm 6.5 mm
ODU K22K0C-P16LFG0-700S				Receptacle Female Sockets	Industrial Medical Military Testing Equipment & Measurement	Free Hanging (In-Line)	Gold	IP68 - Dust Tight Waterproof	7.5 A	Polyetheretherketone (PEEK)		Push-Pull	Backshell Strain Relief	Silver	2	Brass Chrome over Nickel	300 VDC	Brass	Chrome over Nickel		-40 °C	120 °C	Shielded	Metal	Brass	0.256 in	0.276 in		6.5 mm	7 mm			16
ODU K22K0C-P07LPH0-650S				Receptacle Female Sockets	Industrial Medical Military Testing Equipment & Measurement	Free Hanging (In-Line)	Gold	IP68 - Dust Tight Waterproof	12 A	Polyetheretherketone (PEEK)		Push-Pull	Backshell Strain Relief	Silver	2	Brass Chrome over Nickel	600 V	Brass	Chrome over Nickel	7	-40 °C	120 °C	Shielded	Metal	Brass						0.236 in 0.256 in	6 mm 6.5 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 100.55

Description

General part information

K22K0C-P Series

5 Position Circular Connector Receptacle, Female Sockets Crimp
