9340003-301

Active

Laird Thermal Systems, Inc.

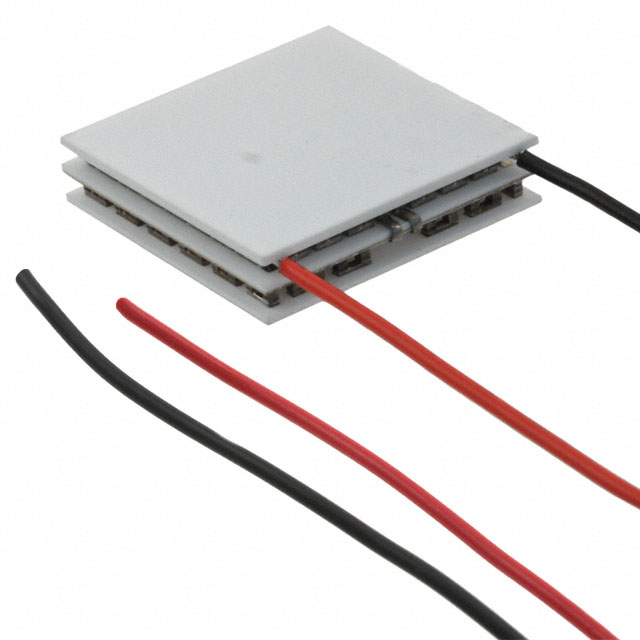

PELTIR MS2,190,10,10,12,12,11,W8

Search across all available documentation for this part.

Active

Laird Thermal Systems, Inc.

PELTIR MS2,190,10,10,12,12,11,W8

Technical Specifications

Parameters and characteristics for this part

Part	Current - Max [Max]	Voltage - Max [Max]	Operating Temperature	Size / Dimension [x]	Size / Dimension [y]	Height [z]	Number of Stages	Delta Tmax @ Th	Features	Qmax @ Th
Laird Thermal Systems, Inc. 9340003-302	2.9 A	15.6 V	80 °C	30 mm	30 mm	6.5 mm	2	87 °C	Lead Wires Sealed - Silicone RTV	16.4 W
Laird Thermal Systems, Inc. 9340003-301	2.9 A	15.6 V	80 °C	30 mm	30 mm	6.5 mm	2	87 °C	Lead Wires Non-Sealed	16.4 W
Laird Thermal Systems, Inc. 9340003-304	2.9 A	15.6 V	80 °C	30 mm	30 mm	6.71 mm	2	87 °C	Lead Wires Non-Sealed	16.4 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Peltier Module 16.4W @ 25°C 2.9 A 80°C
