Technical Specifications
Parameters and characteristics for this part
| Specification | SLKD-16EGFS-GCP-001 |
|---|---|
| Color | Silver |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Fastening Type | Detent Lock, Push-Pull |
| Ingress Protection | IPX8 - Waterproof |
| Insert Material | Thermoplastic |
| Mounting Feature | Bulkhead - Rear Side Nut |
| Number of Positions | 16 |
| Orientation | G |
| Shell Material | Metal |
| Shell Size - Insert | D |
| Shielding | Unshielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 33.49 | |
| 10 | $ 28.46 | |||
| 28 | $ 26.47 | |||
| 56 | $ 25.21 | |||
| 112 | $ 24.00 | |||
| 252 | $ 22.67 | |||
Description
General part information
SLKD Series

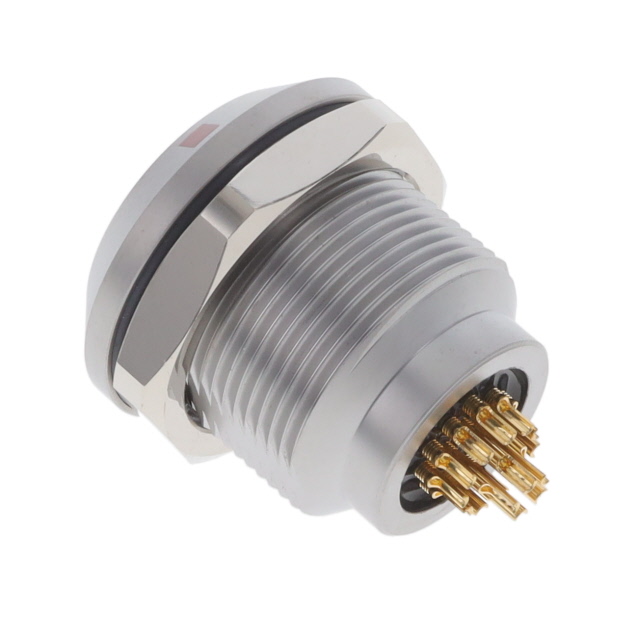

16 Position Circular Connector Receptacle, Female Sockets Solder Cup
