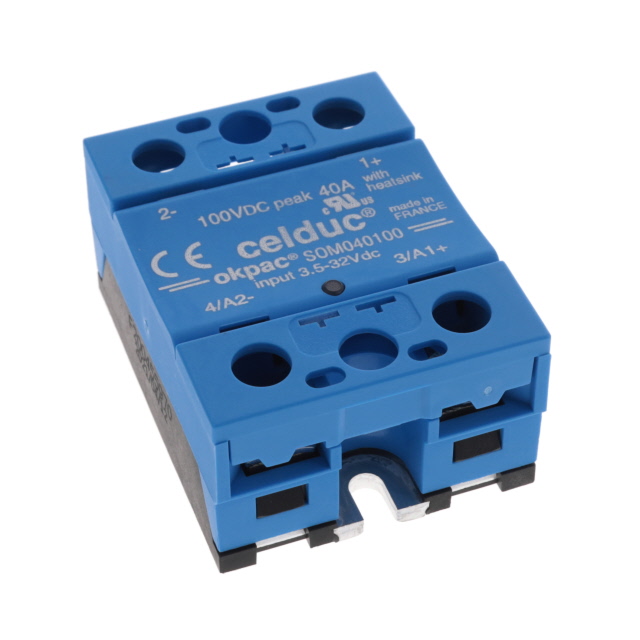

SOM040100
ActiveCelduc Inc.
RELAY: SOLID STATE; UCNTRL: 3.5÷32VDC; 40A; 5÷60VDC; SOM; -25÷90°C
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SOM040100
ActiveCelduc Inc.
RELAY: SOLID STATE; UCNTRL: 3.5÷32VDC; 40A; 5÷60VDC; SOM; -25÷90°C
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SOM040100 |
|---|---|
| Load Current | 40 A |
| Mounting Type | Chassis Mount |
| On-State Resistance (Max) [Max] | 30 mOhms |
| Operating Temperature [Max] | 90 °C |
| Operating Temperature [Min] | -25 °C |
| Output Type | DC |
| Package / Case | Module |
| Termination Style | Screw Terminal |
| Voltage - Input [Max] | 32 V |
| Voltage - Input [Min] | 3.5 V |
| Voltage - Load [Max] | 60 V |
| Voltage - Load [Min] | 0 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
SOM040 Series
Solid State SPST-NO (1 Form A) Module
