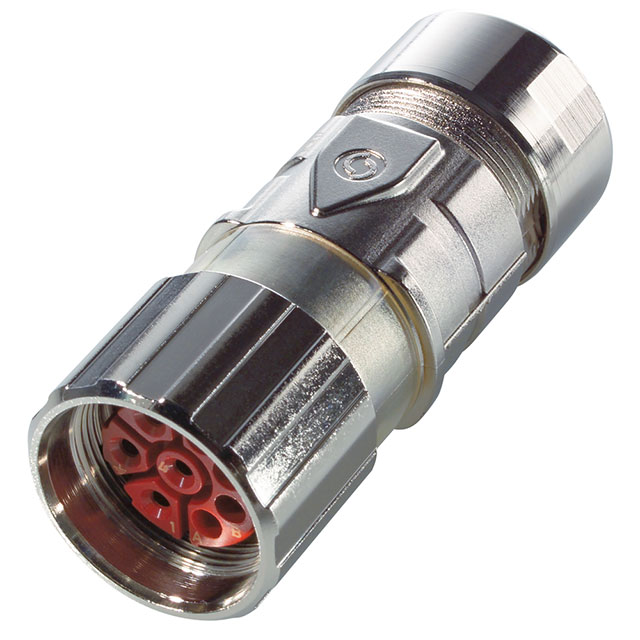

CONNECTOR: LS1; PLUG; PIN: 8(4+4); FEMALE; CRIMPED; FOR CABLE; IP68

Search across all available documentation for this part.

Active

LAPP

CONNECTOR: LS1; PLUG; PIN: 8(4+4); FEMALE; CRIMPED; FOR CABLE; IP68

Technical Specifications

Parameters and characteristics for this part

Specification	76124000

Applications	Industrial, Automotive
Backshell Material, Plating	Nickel, Zinc Die Cast
Cable Opening [diameter]	15.5 mm, 7.5 mm
Cable Opening [diameter]	0.295 in, 0.61 in
Color	Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	7 A, 26 A
Fastening Type	Push-Twist
Ingress Protection	IP67/IP68 - Dust Tight, Waterproof
Insert Material	Polybutylene Terephthalate (PBT), Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	PE
Number of Positions [custom]	3
Number of Positions [custom]	8
Number of Positions [custom]	4
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-25 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shielding	Shielded
Termination	Crimp
Voltage Rating	250 VDC, 630 V

Part	Insert Material	Contact Finish - Mating	Cable Opening [diameter]	Cable Opening [diameter]	Current Rating (Amps)	Connector Type	Backshell Material, Plating	Fastening Type	Primary Material	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Number of Positions	Contact Material	Color	Mounting Type	Shell Material	Shell Finish	Shielding	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Ingress Protection	Material Flammability Rating	Voltage Rating	Applications	Orientation
LAPP 76124000	Polyamide (PA) Nylon Polybutylene Terephthalate (PBT)	Gold	7.5 mm 15.5 mm	0.295 in 0.61 in	7 A 26 A	Female Sockets Plug	Nickel Zinc Die Cast	Push-Twist	Metal	3	8	4	PE	Copper Alloy	Silver	Free Hanging (In-Line)	Zinc Die Cast	Nickel	Shielded	125 °C	-25 °C	Crimp	IP67/IP68 - Dust Tight Waterproof	UL94 V-0	250 VDC 630 V	Automotive Industrial	Keyed

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 (4 + 3 Power + PE) Position Circular Connector Plug, Female Sockets Crimp
