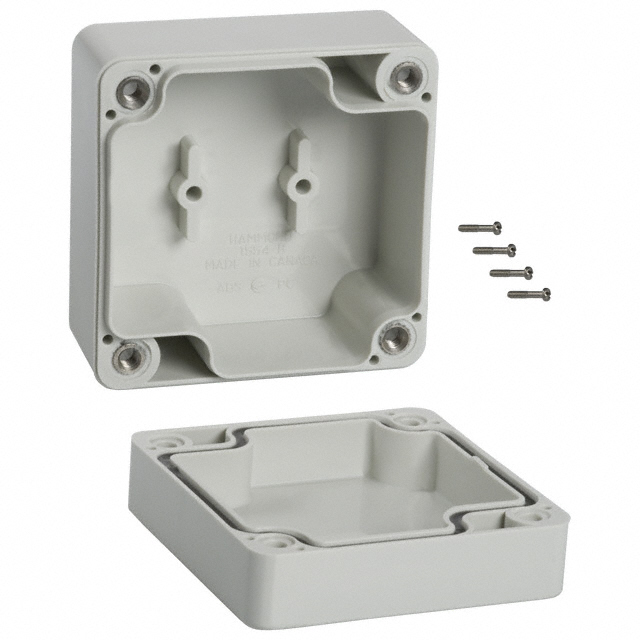

1554BGY

Active

Hammond Manufacturing

BOX PC GRAY 2.56"L X 2.56"W

Deep-Dive with AI

Search across all available documentation for this part.

1554BGY

Active

Hammond Manufacturing

BOX PC GRAY 2.56"L X 2.56"W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1554BGY

Area (L x W) [custom]	6.55 in²
Area (L x W) [custom]	42.3 cm²
Color	Gray
Container Type	Box
Design	Cover Included
Features	Watertight
Height [z]	1.575 in
Height [z]	40 mm
Material	Polycarbonate
Material Flammability Rating	UL94 HB
Ratings	NEMA 4, IP66, 4X, 12, 13
Size / Dimension [x]	2.559 in
Size / Dimension [x]	65 mm
Size / Dimension [y]	65 mm
Size / Dimension [y]	2.559 in
Thickness	3 mm
Thickness	0.118 in

1554 Series

...

Part	Color	Material	Design	Height [z]	Height [z]	Ratings	Features	Thickness	Thickness	Container Type	Material Flammability Rating	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Area (L x W) [custom]	Area (L x W) [custom]	Accessory Type	For Use With/Related Products	Type	Size / Dimension [z]	Size / Dimension [z]	Area (L x W)	Area (L x W)	Weight	Weight	Height [diameter]	Height [diameter]
Hammond Manufacturing 1554BGY	Gray	Polycarbonate	Cover Included	1.575 in	40 mm	12 13 4X IP66 NEMA 4	Watertight	3 mm	0.118 in	Box	UL94 HB	2.559 in	65 mm	2.559 in	65 mm	6.55 in²	42.3 cm²
Hammond Manufacturing 1554Y2GYCL	Clear Cover/Door Gray	Polycarbonate	Cover Included Hand Held	3.74 in	95 mm	IP68 NEMA 12 NEMA 13 NEMA 4 NEMA 4X NEMA 6 NEMA 6P UL-508		4.06 mm	0.16 in	Box	UL94 5VA
Hammond Manufacturing 1554VGASKET																		Gasket Seal	1554V Series
Hammond Manufacturing 1554YPL	Unpainted											11.2 in	225.04 mm	8.86 in	284.48 mm				1554X 1554XA Series	Panel Inner	0.06 "	1.52 mm
Hammond Manufacturing 1554T2GYCL	Clear Cover/Door Gray	Polycarbonate	Cover Included	3.543 in	90 mm	IP68 NEMA 12 NEMA 13 NEMA 4 NEMA 4X UL-508	Card Guides PCB Supports Watertight	3 mm	0.118 in	Box	UL94 5VA												33.5 in˛	216 cm˛	0.38 lb	172.37 g
Hammond Manufacturing 1554FPL	Unpainted											4.3 in	77.47 mm	3.05 in	109.22 mm				1554 1555 Series	Panel Inner
Hammond Manufacturing 1554MPB2	Gray	Plastic Polycarbonate	Cover Included	2.4 in	60.96 mm	12 13 4X IP66 NEMA 4	Card Guides PCB Supports Pushbutton Holes - 2			Box	UL94 5VA	6.3 "	88.9 mm	3.5 in	160.02 mm	22.1 in²	143 cm²								0.52 lb	235.87 g
Hammond Manufacturing 1554GGY	Gray	Polycarbonate	Cover Included			12 13 4X IP66 NEMA 4	Card Guides PCB Supports Watertight	3 mm	0.118 in	Box	UL94 HB	4.724 "	89.99 mm	3.543 in	120 mm								16.7 in²	108 cm²			80 mm	3.15 in
Hammond Manufacturing 1554PGY	Gray	ABS	Cover Included			12 13 4X IP66 NEMA 4	Card Guides PCB Supports Watertight	3 mm	0.118 in	Box	UL94 HB	4.724 "	119.99 mm	4.724 in	120 mm								22.3 in²	144 cm²			80 mm	3.15 in
Hammond Manufacturing 1554EGY	Gray	Polycarbonate	Cover Included	2.362 in	60 mm	12 13 4X IP66 NEMA 4	Card Guides PCB Supports Watertight	3 mm	0.118 in	Box	UL94 HB	3.543 "	89.99 mm	3.543 in	89.99 mm								12.6 in²	81 cm²

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 10.65
		5	$ 10.06
		10	$ 9.47
		25	$ 8.88
		50	$ 8.29
		100	$ 8.14
		250	$ 7.99
		500	$ 7.87
		1000	$ 7.69

Description

General part information

1554 Series

Box Polycarbonate Gray Cover Included 2.559" L x 2.559" W (65.00mm x 65.00mm) X 1.575" (40.00mm)

Documents

Technical documentation and resources

No documents available
