FAA1-08025NBMT31

Active

Qualtek

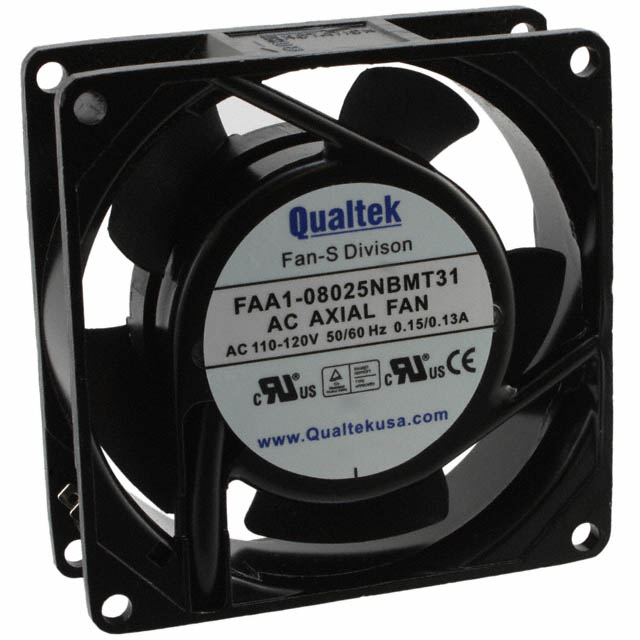

FAN AXIAL 80X25MM 115VAC TERM

Search across all available documentation for this part.

Active

Qualtek

FAN AXIAL 80X25MM 115VAC TERM

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Rated	Static Pressure	Static Pressure	Termination	Bearing Type	Noise	Approval Agency	Material - Blade	Current Rating (Amps)	Fan Type	RPM	Size / Dimension [y]	Size / Dimension [x]	Power (Watts)	Width [y]	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Weight	Weight	Material - Frame	Air Flow	Air Flow
Qualtek FAA1-08025QBHT31	230 VAC	0.125 in H2O	31.1 Pa	2 Terminals	Ball	27.8 dB(A)	CE cURus TUV	Plastic	60 mA	Tubeaxial	2800 RPM	80 mm	80 mm	10 W	25 mm	70 °C	70 °C	-10 °C	-10 °C	210.01 g	0.463 lb	Aluminum
Qualtek FAA1-08025NBMT31	115 VAC	0.118 in H2O	29.4 Pa	2 Terminals	Ball	24 dB	CE cURus TUV	Plastic	0.055 A	Tubeaxial	2500 RPM	80 mm	80 mm	5 W	25 mm	70 °C	70 °C	-10 °C	-10 °C	210.01 g	0.463 lb	Aluminum	0.532 m³/min	19 CFM
Qualtek FAA1-08025QBMT31	230 VAC	0.118 in H2O	29.4 Pa	2 Terminals	Ball	24 dB	CE cURus TUV	Plastic	0.055 A	Tubeaxial	2500 RPM	80 mm	80 mm	11 W	25 mm	70 °C	70 °C	-10 °C	-10 °C	210.01 g	0.463 lb	Aluminum	0.532 m³/min	19 CFM
Qualtek FAA1-08025NSHW31	115 VAC	0.125 in H2O	31.1 Pa	2 Wire Leads	Sleeve	27.8 dB(A)	CE cURus TUV	Plastic	60 mA	Tubeaxial	2800 RPM	80 mm	80 mm	7 W	25 mm	60 °C	60 °C	-10 °C	-10 °C	210.01 g	0.463 lb	Aluminum	0.588 mł/min	21 CFM

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 13.84

General part information

Fan Tubeaxial 115VAC Square - 80mm L x 80mm H Ball 19.0 CFM (0.532m³/min) 2 Terminals
