QBLP653-SAG

Active

QT Brightek (QTB)

LED GREEN/RED CLEAR 1208 SMD

Search across all available documentation for this part.

Active

QT Brightek (QTB)

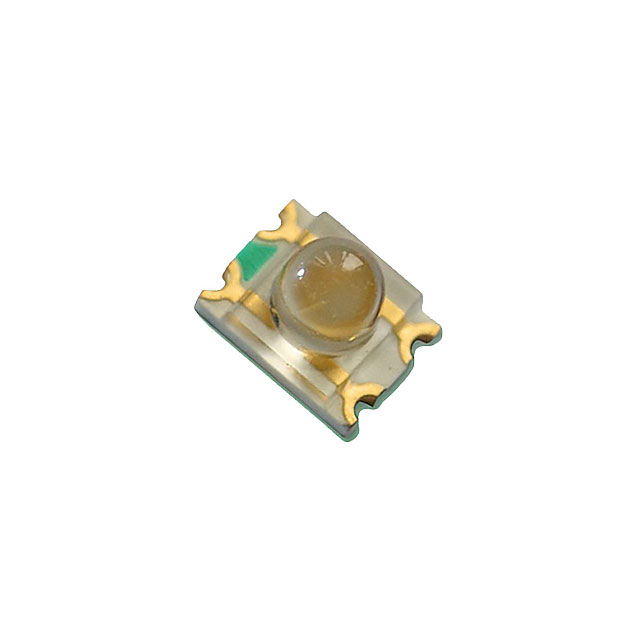

LED GREEN/RED CLEAR 1208 SMD

Technical Specifications

Parameters and characteristics for this part

Specification	QBLP653-SAG

Color	Red, Green
Configuration	Independent
Current - Test	20 mA, 20 mA
Height (Max) [Max] [z]	2.6 mm
Lens Color	Colorless
Lens Size [diameter]	1.8 mm
Lens Style	Round with Domed Top
Lens Transparency	Clear
Millicandela Rating [custom]	30 mcd
Millicandela Rating [custom]	40 mcd
Mounting Type	Surface Mount
Package / Case	1209, 3224 Metric
Size / Dimension [x]	3.2 mm
Size / Dimension [y]	2.4 mm
Supplier Device Package	1208
Viewing Angle	60 °
Voltage - Forward (Vf) (Typ) [custom]	2 V
Voltage - Forward (Vf) (Typ) [custom]	2 V
Wavelength - Dominant	570 nm, 640 nm

Part	Lens Style	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Mounting Type	Viewing Angle	Lens Size [diameter]	Configuration	Size / Dimension [y]	Size / Dimension [x]	Supplier Device Package	Lens Color	Package / Case	Color	Lens Transparency	Millicandela Rating [custom]	Millicandela Rating [custom]	Height (Max) [Max] [z]	Current - Test	Wavelength - Dominant
QT Brightek (QTB) QBLP653-SAG	Round with Domed Top	2 V	2 V	Surface Mount	60 °	1.8 mm	Independent	2.4 mm	3.2 mm	1208	Colorless	1209 3224 Metric	Green Red	Clear	30 mcd	40 mcd	2.6 mm	20 mA 20 mA	570 nm 640 nm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Green, Red 570nm Green, 640nm Red LED Indication - Discrete 2V Green, 2V Red 1209 (3224 Metric)
