VCA821IDR
ActiveWIDEBAND, > 40DB ADJUST RANGE, LINEAR IN DB VARIABLE GAIN AMPLIFIER
Deep-Dive with AI
Search across all available documentation for this part.
VCA821IDR
ActiveWIDEBAND, > 40DB ADJUST RANGE, LINEAR IN DB VARIABLE GAIN AMPLIFIER
Technical Specifications
Parameters and characteristics for this part
| Specification | VCA821IDR |
|---|---|
| -3db Bandwidth | 710 MHz |
| Current - Input Bias | 19 µA |
| Current - Output / Channel [custom] | 90 mA |
| Current - Supply | 34 mA |
| Mounting Type | Surface Mount |
| Number of Circuits | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |

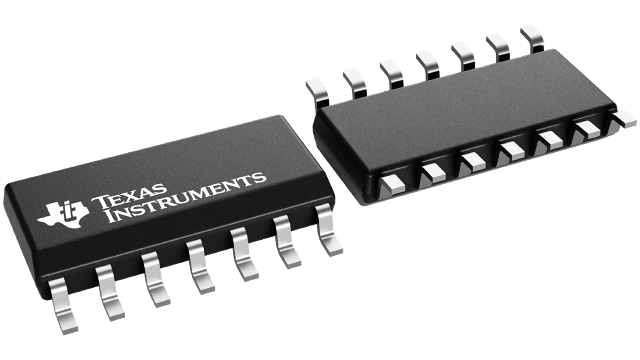

| Package / Case | 14-SOIC |
| Package / Case [x] | 0.154 in |
| Package / Case [y] | 3.9 mm |
| Slew Rate | 2500 V/µs |
| Voltage - Input Offset | 4 mV |
| Voltage - Supply Span (Max) [Max] | 12 V |
| Voltage - Supply Span (Min) [Min] | 7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 2500 | $ 4.45 | |
| Texas Instruments | LARGE T&R | 1 | $ 7.17 | |
| 100 | $ 5.84 | |||
| 250 | $ 4.59 | |||
| 1000 | $ 3.90 | |||
Description
General part information
VCA821 Series
The VCA821 device is a DC-coupled, wideband, linear in dB, continuously variable, voltage-controlled gain amplifier. It provides a differential input to single-ended conversion with a high-impedance gain control input used to vary the gain down 40 dB from the nominal maximum gain set by the gain resistor (RG) and feedback resistor (RF).
The VCA821 device internal architecture consists of two input buffers and an output current feedback amplifier stage integrated with a multiplier core to provide a complete variable gain amplifier (VGA) system that does not require external buffering. The maximum gain is set externally with two resistors, providing flexibility in designs. The maximum gain is intended to be set between 6 dB and 32 dB. Operating from ±5-V supplies, the gain control voltage for the VCA821 device adjusts the gain linearly in dB as the control voltage varies from 0V to +2 V. For example, set at a maximum gain of 20 dB, the VCA821 device provides 20 dB, at VG= +2 V, to less than –20 dB at VG= 0 V. The VCA821 device offers excellent gain linearity. For a 20-dB maximum gain, and a gain-control input voltage varying between +1 V and +2 V, the gain does not deviate by more than ±0.3 dB (maximum at +25°C).
The VCA821 device is a DC-coupled, wideband, linear in dB, continuously variable, voltage-controlled gain amplifier. It provides a differential input to single-ended conversion with a high-impedance gain control input used to vary the gain down 40 dB from the nominal maximum gain set by the gain resistor (RG) and feedback resistor (RF).
