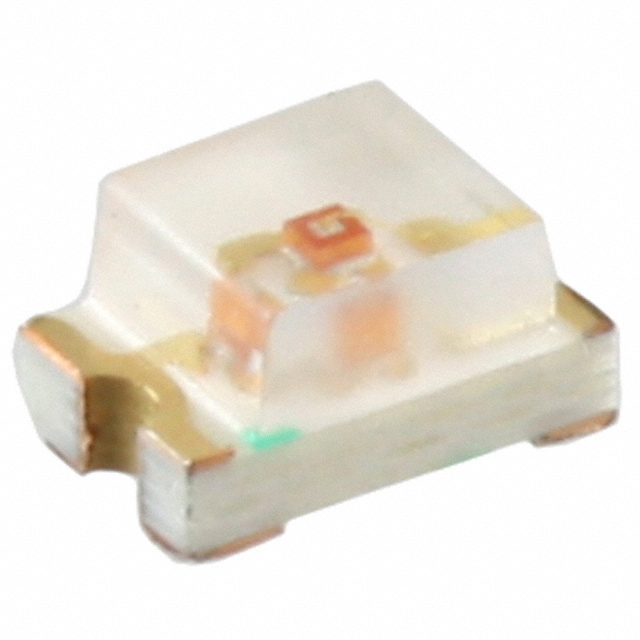

SM0805PGC
ActiveBivar Inc.
SURFACE-MOUNT/AXIAL LED LAMP,GREEN,WATER CLEAR,LED-8D
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SM0805PGC |
|---|---|
| Color | Green |
| Configuration | Standard |
| Current - Test | 20 mA |
| Height (Max) [Max] [z] | 0.8 mm |
| Lens Color | Colorless |
| Lens Size [x] | 1.4 mm |
| Lens Size [y] | 1.2 mm |
| Lens Style | Rectangle with Flat Top |
| Lens Transparency | Clear |
| Millicandela Rating | 4.5 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 0805 |
| Size / Dimension [x] | 2 mm |
| Size / Dimension [y] | 1.2 mm |
| Supplier Device Package | 0805 |
| Viewing Angle | 130 ° |
| Voltage - Forward (Vf) (Typ) | 2 V |
| Wavelength - Dominant [custom] | 555 nm |
| Wavelength - Peak | 555 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
SM0805 Series
Green 555nm LED Indication - Discrete 2V 0805 (2012 Metric)
