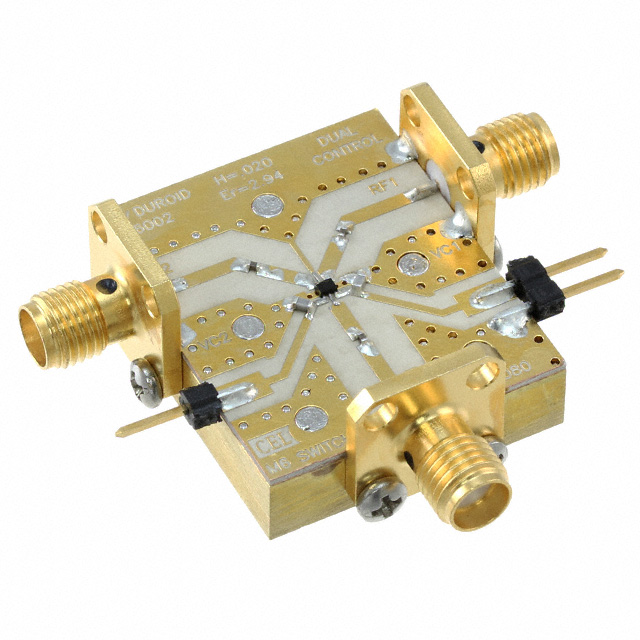

CG2409X3-EVAL

Unknown

CEL

GAAS MMIC SPDT HI POWER SWITCH

Search across all available documentation for this part.

Unknown

CEL

GAAS MMIC SPDT HI POWER SWITCH

Technical Specifications

Parameters and characteristics for this part

Specification	CG2409X3-EVAL

For Use With/Related Products	CG2409M2
Frequency [Max]	6 GHz
Frequency [Min]	50 MHz
Supplied Contents	Board(s)
Type	Switch, SPDT

Part	Frequency [Max]	Frequency [Min]	Type	Supplied Contents	For Use With/Related Products	Package / Case	IIP3	Mounting Type	Impedance	Isolation	Supplier Device Package	Insertion Loss	RF Type	Frequency Range [Min]	Frequency Range [Max]	Test Frequency	Voltage - Supply [Min]	Voltage - Supply [Max]	Circuit
CEL CG2409M2-EVAL	3.8 GHz	50 MHz	Switch SPDT	Board(s)	CG2409M2
CEL CG2409X3-EVAL	6 GHz	50 MHz	Switch SPDT	Board(s)	CG2409M2
CEL CG2409X3-C2						6-XFDFN Exposed Pad	62 dBm	Surface Mount	50 Ohms	32 dB	6-TSON (1.5x1.5)	0.7 dB	802.11a/b/g/n/ac	50 MHz	6 GHz	4 GHz	1.8 V	5 V	SPDT
CEL CG2409M2-C4						6-VSSOP SC-88 SOT-363	62 dBm		50 Ohms	21 dB	6-Minimold	0.5 dB	802.11a/b/g/n/ac	50 MHz	3.8 GHz	3 GHz	1.8 V	5 V	SPDT
CEL CG2409X3						6-XFDFN Exposed Pad	62 dBm	Surface Mount	50 Ohms	32 dB	6-TSON (1.5x1.5)	0.7 dB	802.11a/b/g/n/ac	50 MHz	6 GHz	4 GHz	1.8 V	5 V	SPDT

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

CG2409M2 - Switch, SPDT 50MHz ~ 6GHz Evaluation Board
