QFWB-36-24-US01
ActiveQualtek

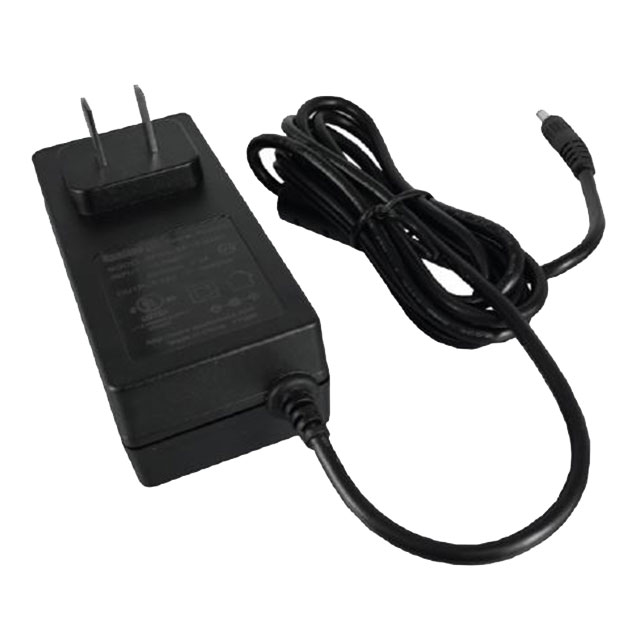

AC/DC WALL MOUNT ADAPTER 24V 36W
Deep-Dive with AI
Search across all available documentation for this part.
QFWB-36-24-US01
ActiveQualtek
AC/DC WALL MOUNT ADAPTER 24V 36W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | QFWB-36-24-US01 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | cULus |
| Cord Length | 1.2 m |
| Cord Length | 47.2 in |
| Current - Output (Max) [Max] | 1.5 A |
| Efficiency | Level VI |
| Form | Wall Mount (Class II) |
| Input Connector | NEMA 1-15P |
| Input Type | Fixed Blade |
| No Load Power Consumption | 100 mW |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | 0 °C |
| Output Connector | Barrel Plug |
| Output Connector [diameter] | 5.5 mm, 2.1 mm |
| Output Connector [z] | 11 mm |
| Polarization | Positive Center |
| Power (Watts) | 36 W |
| Region Utilized | North America |
| Size / Dimension [x] | 3.82 in |
| Size / Dimension [x] | 97.1 mm |
| Size / Dimension [y] | 45.1 mm |
| Size / Dimension [y] | 1.78 " |
| Size / Dimension [z] | 1.26 in |
| Size / Dimension [z] | 32 mm |
| Voltage - Input [Max] | 240 VAC |
| Voltage - Input [Min] | 100 VAC |
| Voltage - Output | 24 V |
| Weight | 180.08 g |
| Weight | 0.397 lb |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 12.79 | |
| 60 | $ 10.37 | |||
| 120 | $ 9.68 | |||
| 1020 | $ 9.20 | |||
Description
General part information
QFWB-36 Series
24V 36 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade Input
