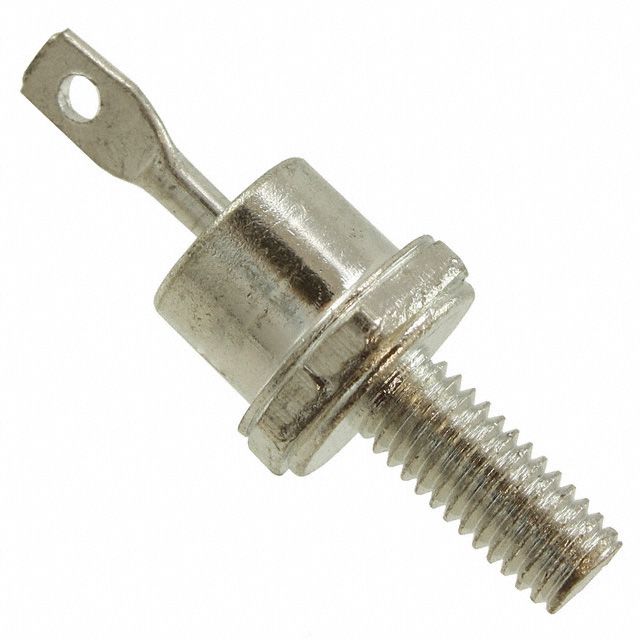

1N3892

Active

GeneSiC Semiconductor

DIODE GEN PURP 400V 12A DO4

Search across all available documentation for this part.

Active

GeneSiC Semiconductor

DIODE GEN PURP 400V 12A DO4

Technical Specifications

Parameters and characteristics for this part

Specification	1N3892

Current - Average Rectified (Io)	12 A
Mounting Type	Chassis, Stud Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-65 C
Package / Case	Stud, DO-203AA, DO-4
Reverse Recovery Time (trr)	200 ns
Speed	200 mA, 500 ns
Supplier Device Package	DO-4
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	400 V
Voltage - Forward (Vf) (Max) @ If	1.4 V

Part	Supplier Device Package	Reverse Recovery Time (trr)	Current - Average Rectified (Io)	Voltage - Forward (Vf) (Max) @ If	Package / Case	Speed	Mounting Type	Technology	Voltage - DC Reverse (Vr) (Max) [Max]	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]
GeneSiC Semiconductor 1N3892	DO-4	200 ns	12 A	1.4 V	DO-203AA DO-4 Stud	200 mA 500 ns	Chassis Stud Mount	Standard	400 V	150 °C	-65 C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 400 V 12A Chassis, Stud Mount DO-4
