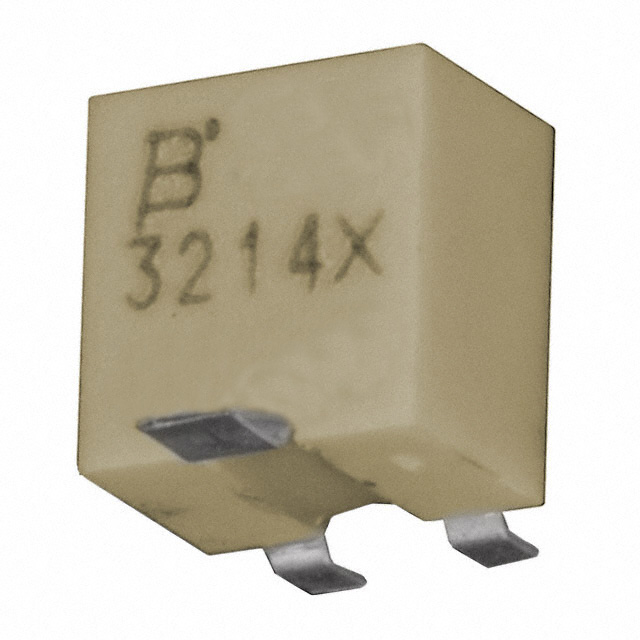

3214X-1-102E
ActiveBourns Inc.
TRIMMER 1K OHM 0.25W GW TOP ADJ
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
3214X-1-102E
ActiveBourns Inc.
TRIMMER 1K OHM 0.25W GW TOP ADJ
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 3214X-1-102E |
|---|---|
| Adjustment Type | Top Adjustment |
| Mounting Type | Surface Mount |
| Number of Turns | 5 |
| Power (Watts) | 0.25 W |
| Power (Watts) | 250 mW |
| Resistance | 1000 Ohms |
| Resistive Material | Cermet |
| Size / Dimension [x] | 0.189 " |
| Size / Dimension [x] | 4.8 mm |
| Size / Dimension [y] | 3.5 mm |
| Size / Dimension [y] | 0.138 in |
| Temperature Coefficient | 100 ppm/°C |
| Termination Style | Gull Wing |
| Tolerance | 10 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 3.07 | |
| 10 | $ 2.69 | |||
| 25 | $ 2.42 | |||
| 50 | $ 2.32 | |||
| 100 | $ 2.23 | |||
| Digi-Reel® | 1 | $ 3.07 | ||
| 10 | $ 2.69 | |||
| 25 | $ 2.42 | |||
| 50 | $ 2.32 | |||
| 100 | $ 2.23 | |||
| Tape & Reel (TR) | 200 | $ 2.23 | ||
| 400 | $ 2.14 | |||
| 600 | $ 1.77 | |||
| 1000 | $ 1.67 | |||
| 2000 | $ 1.44 | |||
| 5000 | $ 1.39 | |||
Description
General part information
3214X Series
1 kOhms 0.25W, 1/4W Gull Wing Surface Mount Trimmer Potentiometer Cermet 5 Turn Top Adjustment
