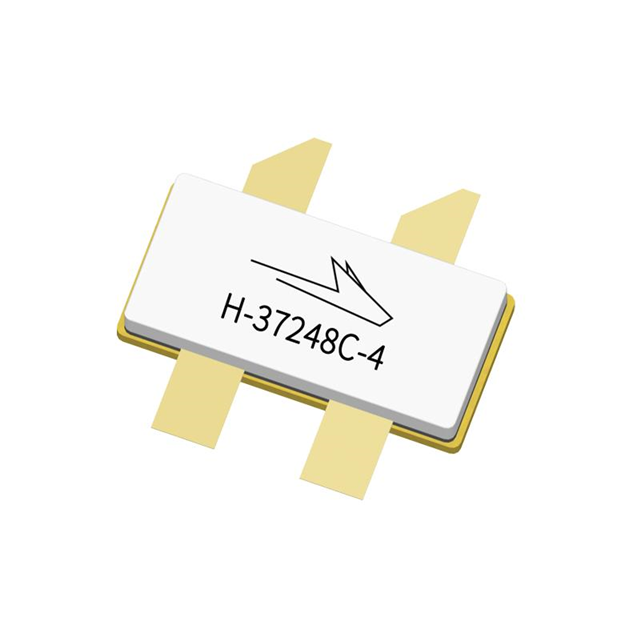

GTVA261802FC-V1-R2
ActiveMACOM Technology Solutions
RF MOSFET HEMT 48V H-37248C-4
Deep-Dive with AI
Search across all available documentation for this part.
GTVA261802FC-V1-R2
ActiveMACOM Technology Solutions
RF MOSFET HEMT 48V H-37248C-4
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | GTVA261802FC-V1-R2 |
|---|---|
| Current - Test | 160 mA |
| Frequency [Max] | 2.69 GHz |
| Frequency [Min] | 2.62 GHz |
| Gain | 16.8 dB |
| Mounting Type | Surface Mount |
| Package / Case | H-37248C-4 |
| Power - Output | 170 W |
| Supplier Device Package | H-37248C-4 |
| Technology | HEMT |
| Voltage - Rated | 125 V |
| Voltage - Test | 48 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 250 | $ 108.00 | |
Description
General part information
GTVA261802 Series
RF Mosfet 48 V 160 mA 2.62GHz ~ 2.69GHz 16.8dB 170W H-37248C-4
Documents
Technical documentation and resources
No documents available
