LHD-06-TS

Active

Adam Tech

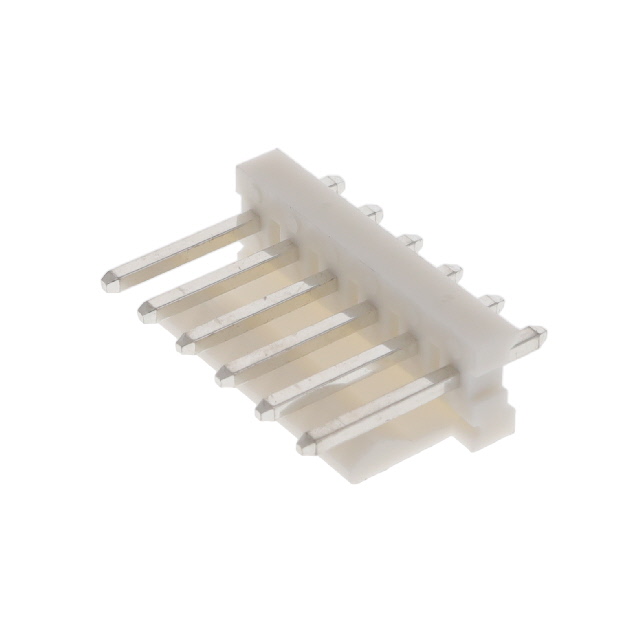

CONN HEADER VERT 6POS 3.96MM

Search across all available documentation for this part.

Active

Adam Tech

CONN HEADER VERT 6POS 3.96MM

Technical Specifications

Parameters and characteristics for this part

Specification	LHD-06-TS

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	0.448 in
Contact Length - Mating	11.38 mm
Contact Length - Post	3.6 mm
Contact Length - Post	0.142 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	7 A
Fastening Type	Friction Lock
Insulation Color	White
Insulation Height	0.425 in
Insulation Height	10.8 mm
Insulation Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2
Mounting Type	Through Hole
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Overall Contact Length [x]	0.715 "
Overall Contact Length [x]	18.16 mm
Pitch - Mating	0.156 in
Pitch - Mating	3.96 mm
Shrouding	Shrouded - 1 Wall
Style	Board to Cable/Wire
Termination	Solder

Part	Current Rating (Amps)	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Connector Type	Contact Length - Mating [custom]	Contact Length - Mating [custom]	Termination	Shrouding	Contact Type	Pitch - Mating	Pitch - Mating	Insulation Material	Contact Length - Post	Contact Length - Post [x]	Material Flammability Rating	Fastening Type	Insulation Color	Number of Positions Loaded	Insulation Height [z]	Insulation Height [z]	Number of Positions	Number of Rows	Style	Contact Shape	Contact Length - Post	Insulation Height	Insulation Height	Overall Contact Length [x]	Overall Contact Length [x]	Contact Finish - Post	Contact Length - Mating	Contact Length - Mating
Adam Tech LHD-06-TRA	7 A	Through Hole Right Angle	85 °C	-40 °C	Brass	Header	11.4 mm	0.449 in	Solder	Shrouded - 1 Wall	Male Pin	0.156 in	3.96 mm	Polyamide (PA66) Nylon 6/6 Glass Filled	3.2 mm	0.126 in	UL94 V-2	Friction Lock	White	All	0.3 in	7.62 mm	6	1	Board to Cable/Wire	Square
Adam Tech LHD-06-TS	7 A	Through Hole	85 °C	-40 °C	Brass	Header			Solder	Shrouded - 1 Wall	Male Pin	0.156 in	3.96 mm	Polyamide (PA66) Nylon 6/6	3.6 mm		UL94 V-2	Friction Lock	White	All			6	1	Board to Cable/Wire	Square	0.142 in	0.425 in	10.8 mm	0.715 "	18.16 mm	Tin	0.448 in	11.38 mm
