SR927

Active

Murata Power Solutions Inc.

SILVER OXIDE BATTERY COIN 1.55V 60MAH PRIMARY

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

SILVER OXIDE BATTERY COIN 1.55V 60MAH PRIMARY

Technical Specifications

Parameters and characteristics for this part

Specification	SR927

Battery Cell Size	9.5 mm
Battery Cell Size	Coin
Battery Chemistry	Silver Oxide
Capacity	60 mAh
Size / Dimension [diameter]	9.5 mm
Size / Dimension [diameter]	0.37 in
Size / Dimension [z]	0.11 in
Size / Dimension [z]	2.7 mm
Storage/Refrigeration Temperature [Max]	77 °F
Storage/Refrigeration Temperature [Min]	10 °C
Termination Style	Requires Holder
Voltage - Rated	1.55 V

Part	Termination Style	Battery Chemistry	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Battery Cell Size	Battery Cell Size	Voltage - Rated	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [diameter]	Size / Dimension [diameter]	Capacity
Murata Power Solutions Inc. SR927	Requires Holder	Silver Oxide	10 °C	77 °F	9.5 mm	Coin	1.55 V	0.11 in	2.7 mm	9.5 mm	0.37 in	60 mAh
Murata Power Solutions Inc. SR920/8MR1	Requires Holder	Silver Oxide	10 °C	77 °F	9.5 mm	Coin	1.55 V	0.08 in	2.1 mm	9.5 mm	0.37 in	40 mAh

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

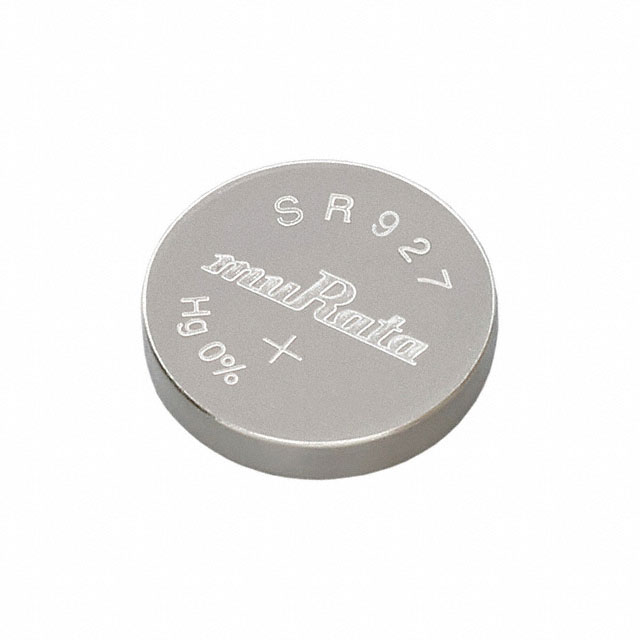

Coin, 9.5mm Silver Oxide 1.55 V Battery Non-Rechargeable (Primary)
