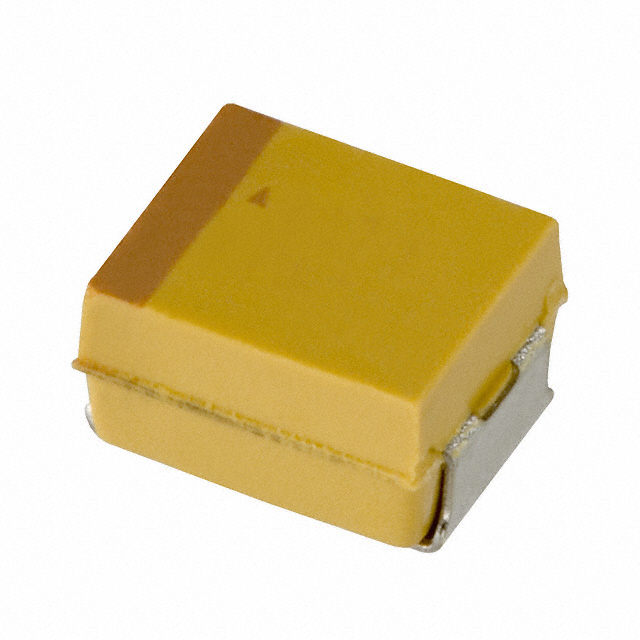

NOJT685M010RWJ

Obsolete

Kyocera AVX

CAP NIOB OXID 6.8UF 20% 10V 1210

Search across all available documentation for this part.

Obsolete

Kyocera AVX

CAP NIOB OXID 6.8UF 20% 10V 1210

Technical Specifications

Parameters and characteristics for this part

Specification	NOJT685M010RWJ

Capacitance	6.8 ÁF
Current - Leakage	1.4 µA
Dissipation Factor	6 %
ESR (Equivalent Series Resistance)	2.6 Ohms
Height - Seated (Max) [Max]	1.2 mm
Height - Seated (Max) [Max]	0.047 in
Manufacturer Size Code	T
Mounting Type	Surface Mount
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	1210, 1411 (3528 Metric)
Size / Dimension [x]	0.138 "
Size / Dimension [x]	3.5 mm
Size / Dimension [y]	0.11 in
Size / Dimension [y]	2.8 mm
Supplier Device Package	3528 Metric
Supplier Device Package	1210
Tolerance	20 %
Voltage - Rated	10 V

Part	Supplier Device Package	Supplier Device Package	Tolerance	Capacitance	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Operating Temperature [Max]	Operating Temperature [Min]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Package / Case	Manufacturer Size Code	Current - Leakage	ESR (Equivalent Series Resistance)	Dissipation Factor	Mounting Type	Voltage - Rated
Kyocera AVX NOJT106M010RWJ	3528 Metric	1210	20 %	10 µF	0.11 in	2.8 mm	0.138 "	3.5 mm	105 ░C	-55 °C	1.2 mm	0.047 in	1210 1411 (3528 Metric)	T	2 µA	2.2 Ohms	6 %	Surface Mount	10 V
Kyocera AVX NOJT685M010RWJ	3528 Metric	1210	20 %	6.8 ÁF	0.11 in	2.8 mm	0.138 "	3.5 mm	105 ░C	-55 °C	1.2 mm	0.047 in	1210 1411 (3528 Metric)	T	1.4 µA	2.6 Ohms	6 %	Surface Mount	10 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

6.8 µF Niobium Oxide Capacitor 10 V 1411 (3528 Metric), 1210 2.6 Ohms
