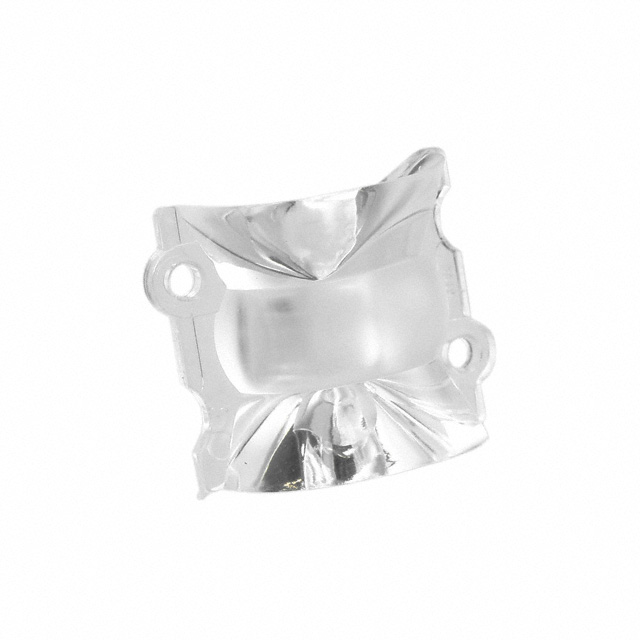

C10946_FLARE-B

Active

LEDiL

LED LENS, CLIP-ON, TRANSPARENT, RECTANGULAR, PMMA (POLYMETHYLMETHACRYLATE)

Search across all available documentation for this part.

Active

LEDiL

LED LENS, CLIP-ON, TRANSPARENT, RECTANGULAR, PMMA (POLYMETHYLMETHACRYLATE)

Technical Specifications

Parameters and characteristics for this part

Specification	C10946_FLARE-B

Color	Clear
For Use With/Related Manufacturer	Lumileds, Osram, Cree, Seoul, Nichia, Samsung, Sharp
Lens Size [x]	29 mm
Lens Size [y]	23 mm
Lens Style	Hourglass
Lens Transparency	Diffused
Material	Acrylic
Mounting Type	Adhesive, Screw
Number of LEDs	1
Optical Pattern	Elliptical/Oval
Type	Lens with Integrated Mount

Part	Type	Lens Style	Mounting Type	Number of LEDs	Color	Lens Transparency	Optical Pattern	Lens Size [y]	Lens Size [x]	Material	For Use With/Related Manufacturer
LEDiL C10946_FLARE-B	Lens with Integrated Mount	Hourglass	Adhesive Screw	1	Clear	Diffused	Elliptical/Oval	23 mm	29 mm	Acrylic	Cree Lumileds Nichia Osram Samsung Seoul Sharp

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	224	$ 2.43
Newark	Each	1	$ 2.53

General part information

Lens with Integrated Mount Clear Elliptical/Oval Adhesive, Screw
