5220.0243.1

Active

SCHURTER Inc.

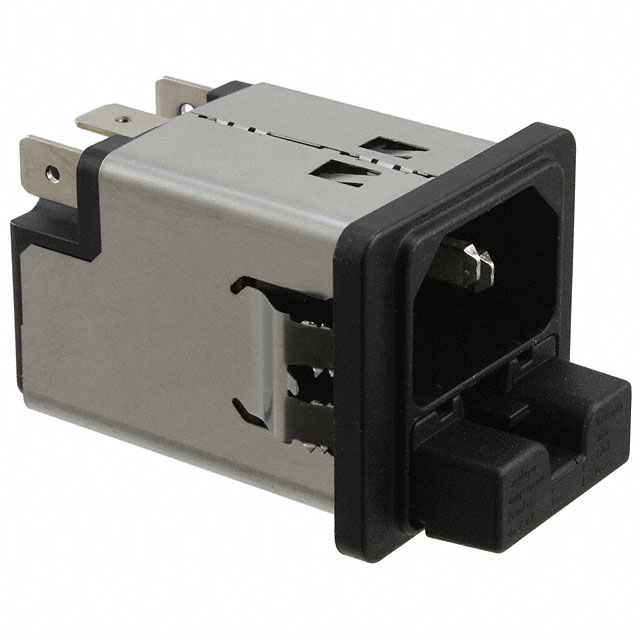

5220, MOUNTING: SNAP-IN, FRONT SIDE, FILTER: STANDARD VERSION, FUSE HOLDER: 2-POLE, FRONT SIDE, 2 A, THERMOPLASTIC APPLIANCE INL

Search across all available documentation for this part.

Active

SCHURTER Inc.

5220, MOUNTING: SNAP-IN, FRONT SIDE, FILTER: STANDARD VERSION, FUSE HOLDER: 2-POLE, FRONT SIDE, 2 A, THERMOPLASTIC APPLIANCE INL

Technical Specifications

Parameters and characteristics for this part

Specification	5220.0243.1

Accomodates a Fuse	True
Approval Agency	ENEC, cULus
Connector Style	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	2 A
Current Rating - Filter	2 A
Filter Type	Filtered (EMI, RFI) - Commercial
Fuse Holder, Drawer	Fuse Holder
Ingress Protection	IP40
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Snap-In
Panel Cutout Dimensions [x]	29 mm
Panel Cutout Dimensions [y]	32 mm
Panel Thickness [Max]	0.118 in
Panel Thickness [Max]	3 mm
Panel Thickness [Min]	0.79 mm
Panel Thickness [Min]	0.031 "
Termination	0.25 in
Termination	6.3 mm
Termination	Quick Connect
Voltage Rating - Appliance Inlet	250 VAC

AC Power Entry Modules 5220 PWR ENTRY MODUL W. FILTER 2A

Part	Connector Type	Connector Style	Ingress Protection	Termination	Termination	Termination	Material Flammability Rating	Current Rating - Appliance Inlet	Mounting Type	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Max]	Panel Thickness [Min]	Voltage Rating - Appliance Inlet	Current Rating - Filter	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Filter Type	Fuse Holder, Drawer	Approval Agency
SCHURTER Inc. 5220.0243.1	Receptacle Male Blades - Module	IEC 320-C14	IP40	0.25 in	6.3 mm	Quick Connect	UL94 V-0	2 A	Panel Mount Snap-In	0.79 mm	0.118 in	3 mm	0.031 "	250 VAC	2 A	32 mm	29 mm	Filtered (EMI RFI) - Commercial	Fuse Holder	cULus ENEC
SCHURTER Inc. 5220.1023.3	Receptacle Male Blades - Module	IEC 320-C14	IP40	0.25 in	6.3 mm	Quick Connect	UL94 V-0	10 A	Flange Panel Mount					250 VAC	10 A	32 mm	29 mm	Filtered (EMI RFI) - Commercial Medical	Fuse Holder	cULus ENEC
SCHURTER Inc. 5220.0423.1	Receptacle Male Blades - Module	IEC 320-C14	IP40	0.25 in	6.3 mm	Quick Connect	UL94 V-0	4 A	Flange Panel Mount					250 VAC	4 A	32 mm	29 mm	Filtered (EMI RFI) - Commercial	Fuse Holder	cULus ENEC
SCHURTER Inc. 5220.0443.1	Receptacle Male Blades - Module	IEC 320-C14	IP40	0.25 in	6.3 mm	Quick Connect	UL94 V-0	4 A	Panel Mount Snap-In	0.79 mm	0.118 in	3 mm	0.031 "	250 VAC	4 A	32 mm	29 mm	Filtered (EMI RFI) - Commercial	Fuse Holder	cULus ENEC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

AC Power Entry Modules 5220 PWR ENTRY MODUL W. FILTER 2A
