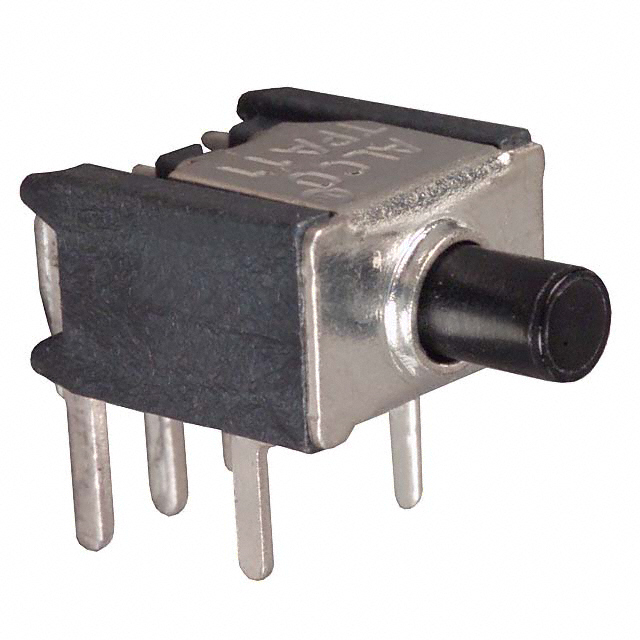

1-1825096-4
ActiveTE Connectivity Raychem Cable Protection
SWITCH PUSH 2XSPST 0.4VA 20V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1-1825096-4
ActiveTE Connectivity Raychem Cable Protection
SWITCH PUSH 2XSPST 0.4VA 20V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-1825096-4 |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Round, Plunger |
| Circuit | SPST x 2 |
| Color - Actuator/Cap | Black |
| Current Rating (Amps) | 0.4 VA |
| Electrical Life | 80000 Cycles |
| Mounting Type | Through Hole, Right Angle |
| Operating Temperature [Max] | 65 °C |
| Operating Temperature [Min] | -30 ░C |
| Switch Function | Off-Mom |
| Termination Style | PC Pin |
| Type | Standard |
| Voltage Rating - AC | 20 V |
| Voltage Rating - DC | 20 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1000 | $ 9.89 | |
Description
General part information
1-1825096 Series
Pushbutton Switch SPST x 2 Standard Through Hole, Right Angle
