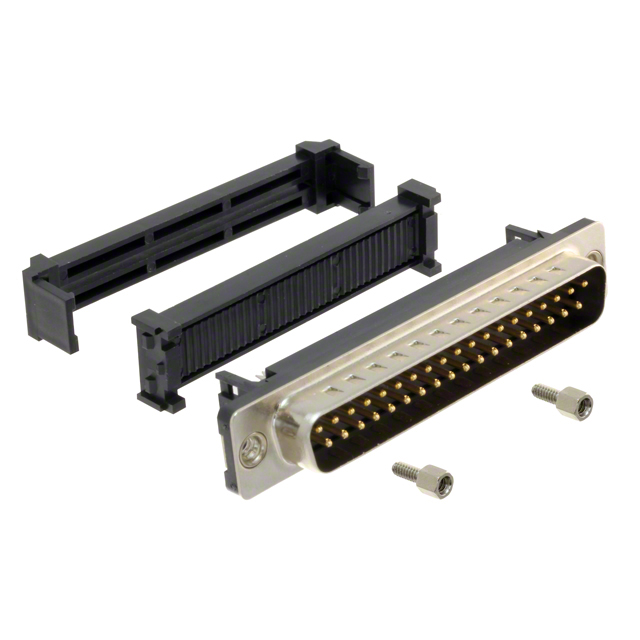

410M0-37-1-004S

Active

CnC Tech, LLC

CONN D-SUB PLUG 37POS IDC

Search across all available documentation for this part.

Active

CnC Tech, LLC

CONN D-SUB PLUG 37POS IDC

Technical Specifications

Parameters and characteristics for this part

Specification	410M0-37-1-004S

Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Material	Brass
Contact Type	Signal
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Strain Relief, Grounding Indents, Feed Through
Flange Feature	Female Screwlock (4-40), Mating Side
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	37
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	4 (DC, C)
Termination	IDC, Ribbon Cable
Voltage Rating	250 VDC

Part	Mounting Type	Features	Shell Material, Finish	Contact Material	Dielectric Material	Number of Rows	Voltage Rating	Number of Positions	Termination	Contact Type	Connector Style	Shell Size, Connector Layout	Flange Feature	Connector Type	Material Flammability Rating	Contact Finish	Operating Temperature [Min]	Operating Temperature [Max]
CnC Tech, LLC 410M0-37-1-004S	Free Hanging (In-Line)	Feed Through Grounding Indents Strain Relief	Nickel Plated Steel	Brass	Polybutylene Terephthalate (PBT) Glass Filled	2	250 VDC	37	IDC Ribbon Cable	Signal	D-Sub	4 (DC C)	Female Screwlock (4-40) Mating Side	Male Pins Plug	UL94 V-0	Gold	-40 °C	105 ░C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

37 Position D-Sub Plug, Male Pins Connector
