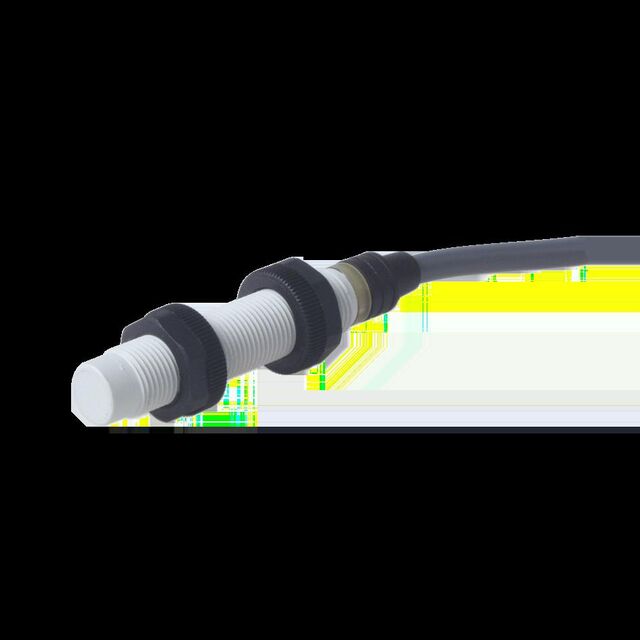

EI1202PPOPL

Active

CARLO GAVAZZI

SENSOR: INDUCTIVE; OUT: PNP / NO; 2MM; 10÷40VDC; M12; 2M; IP67; 200MA

Search across all available documentation for this part.

Active

CARLO GAVAZZI

SENSOR: INDUCTIVE; OUT: PNP / NO; 2MM; 10÷40VDC; M12; 2M; IP67; 200MA

Technical Specifications

Parameters and characteristics for this part

Part	Termination Style	Output Type	Sensing Distance	Sensing Distance	Package / Case	Material - Body	Ingress Protection	Voltage - Supply [Min]	Voltage - Supply [Max]	Shielding	Operating Temperature [Max]	Operating Temperature [Min]	Sensor Type	Indicator [custom]
CARLO GAVAZZI EI1202PPOSS	Cable Leads	PNP-NO 3-Wire	0.079 in	2 mm	Cylinder Threaded - M12	Stainless Steel	IP67 NEMA 1 NEMA 13 NEMA 3 NEMA 4 NEMA 6	12 V	36 V	Unshielded	70 °C	-25 °C	Inductive	LED
CARLO GAVAZZI EI1202PPOPL	Cable Leads	PNP-NO 3-Wire	0.079 in	2 mm	Cylinder Threaded - M12	Plastic	IP67 NEMA 1 NEMA 13 NEMA 3 NEMA 4 NEMA 6	10 VDC	40 VDC	Unshielded	70 °C	-25 °C	Inductive	LED
CARLO GAVAZZI EI1202NPOSL-1	Connector	NPN-NO 3-Wire	0.079 in	2 mm	Cylinder Threaded - M12	Stainless Steel	IP67 NEMA 1 NEMA 13 NEMA 3 NEMA 4 NEMA 6	10 VDC	40 VDC	Unshielded	70 °C	-25 °C	Inductive	LED

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SENSOR: INDUCTIVE; OUT: PNP / NO; 2MM; 10÷40VDC; M12; 2M; IP67; 200MA

Technical documentation and resources
