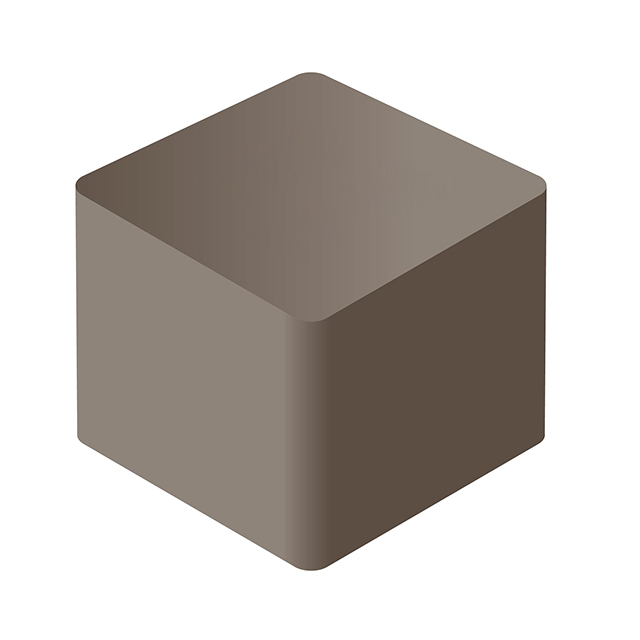

SRP6050CA-2R2M
ActiveBourns Inc.
POWER INDUCTOR (SMD), 2.2 ΜH, 13 A, SHIELDED, 16 A, SRP6050CA SERIES
Deep-Dive with AI
Search across all available documentation for this part.
SRP6050CA-2R2M
ActiveBourns Inc.
POWER INDUCTOR (SMD), 2.2 ΜH, 13 A, SHIELDED, 16 A, SRP6050CA SERIES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SRP6050CA-2R2M |
|---|---|
| Current - Saturation (Isat) | 16 A |
| Current Rating (Amps) | 13 A |
| DC Resistance (DCR) | 8.5 mOhm |
| Frequency - Self Resonant | 30 MHz |
| Height - Seated (Max) [Max] [z] | 0.197 in |
| Height - Seated (Max) [Max] [z] | 5 mm |
| Inductance | 2.2 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Iron Powder |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 155 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Nonstandard |
| Ratings | AEC-Q200 |
| Shielding | Shielded |
| Size / Dimension [x] | 0.26 ", 6.6 mm |
| Size / Dimension [y] | 6.4 mm, 0.252 " |
| Tolerance | 20 % |
| Type | Wirewound, Drum Core |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.81 | |
| 10 | $ 1.54 | |||
| 25 | $ 1.42 | |||
| 50 | $ 1.27 | |||
| 100 | $ 1.06 | |||
| 250 | $ 1.03 | |||
| Digi-Reel® | 1 | $ 1.81 | ||
| 10 | $ 1.54 | |||
| 25 | $ 1.42 | |||
| 50 | $ 1.27 | |||
| 100 | $ 1.06 | |||
| 250 | $ 1.03 | |||
| Tape & Reel (TR) | 800 | $ 0.94 | ||
| 1600 | $ 0.91 | |||
| 2400 | $ 0.88 | |||
| 5600 | $ 0.85 | |||
| Newark | Each (Supplied on Full Reel) | 1 | $ 1.03 | |
| 1000 | $ 0.97 | |||
| 2000 | $ 0.92 | |||
| 4000 | $ 0.82 | |||
| 6000 | $ 0.80 | |||
| 10000 | $ 0.77 | |||
Description
General part information
SRP6050 Series
2.2 µH Shielded Drum Core, Wirewound Inductor 13 A 8.5mOhm Max Nonstandard
