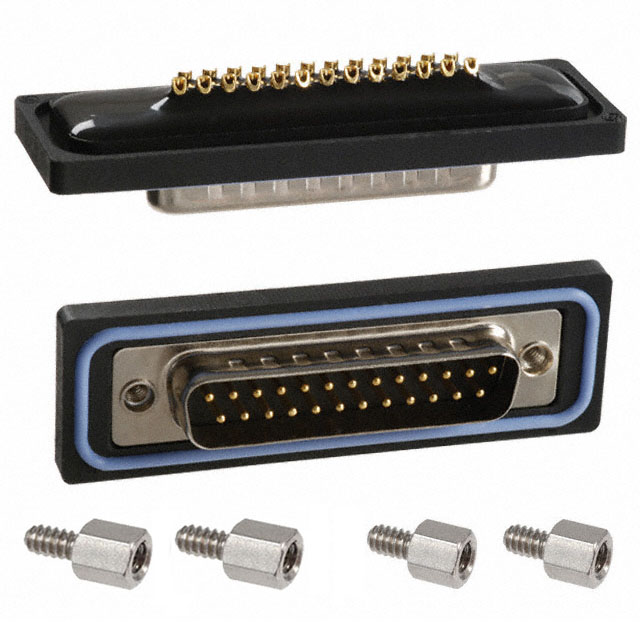

CONN D-SUB PLUG 25POS PNL MNT

Search across all available documentation for this part.

Active

Assmann WSW Components

CONN D-SUB PLUG 25POS PNL MNT

Technical Specifications

Parameters and characteristics for this part

Specification	A-DS 25 LL-WP

Color	Black
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Material	Copper Alloy
Contact Type	Signal
Features	Grounding Indents
Flange Feature	Female Screwlock, Mating Side
Ingress Protection	IP68 - Dust Tight, Waterproof
Number of Rows	2
Shell Size, Connector Layout [custom]	DB, B
Shell Size, Connector Layout [custom]	3
Wire Gauge [Max]	26 AWG
Wire Gauge [Min]	22 AWG

Part	Contact Type	Color	Mounting Type	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Number of Rows	Flange Feature	Ingress Protection	Connector Type	Termination	Connector Style	Features	Contact Finish	Wire Gauge [Min]	Wire Gauge [Max]	Contact Material	Current Rating (Amps)	Contact Finish Thickness	Backset Spacing	Backset Spacing	Voltage Rating	Dielectric Material	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating
Assmann WSW Components A-DS 25 PP-WP	Signal	Black	Panel Mount Through Hole	B DB	3	2	Female Screwlock Mating Side	IP68 - Dust Tight Waterproof	Male Pins Plug	Solder	D-Sub	Grounding Indents
Assmann WSW Components A-DS 25 LL-WP	Signal	Black		B DB	3	2	Female Screwlock Mating Side	IP68 - Dust Tight Waterproof	Male Pins Plug		D-Sub	Grounding Indents	Gold	22 AWG	26 AWG	Copper Alloy
Assmann WSW Components A-DS 25 A/KG-T4S	Signal	Black	Through Hole Right Angle	B DB	3	2	Housing/Shell (4-40)		Male Pins Plug	Solder	D-Sub	Board Lock Grounding Indents	Gold			Brass	3 A	Flash	0.319 in	8.1 mm	250 VDC	Polybutylene Terephthalate (PBT) Glass Filled	105 ░C	-55 °C	UL94 V-0

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

25 Position D-Sub Plug, Male Pins Connector
