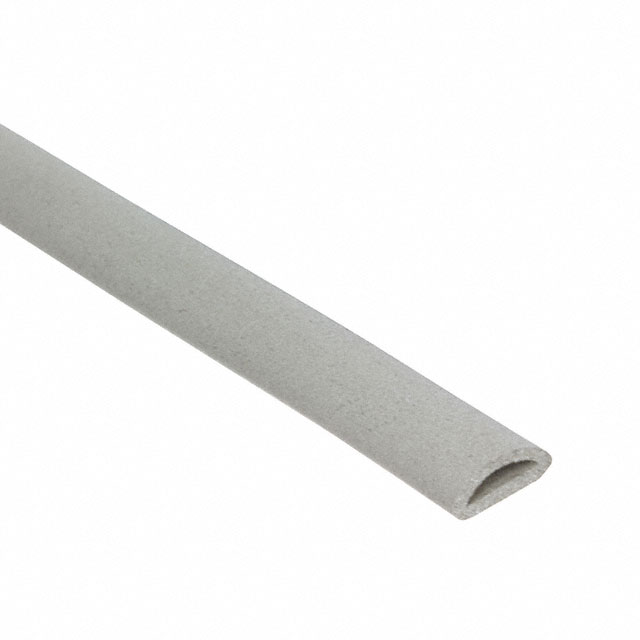

19-05-11440-1298

Active

Parker Chomerics

RF EMI GASKET 12" X 0.246"

Search across all available documentation for this part.

Active

Parker Chomerics

RF EMI GASKET 12" X 0.246"

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Max]	Operating Temperature [Min]	Material	Plating	Attachment Method	Type	Shape	Height [z]	Height [z]	Width [y]	Width [y]	Width	Width	Thickness - Overall	Thickness - Overall
Parker Chomerics 19-05-11440-6502	66 °C	-29 °C	Conductive Elastomer	Nickel	No Adhesive	Gasket	D-Shape	3.68 mm	0.145 in	6.25 mm	0.246 in
Parker Chomerics 19-05-14587-6502	66 °C	-29 °C	Conductive Elastomer	Nickel	No Adhesive	Gasket	D-Shape	8.23 mm	0.324 "			12.37 mm	0.487 in
Parker Chomerics 19-05-11440-1298	66 °C	-29 °C				Gasket	D-Shape			6.25 mm	0.246 in			0.146 in	3.68 mm
Parker Chomerics 19-05-14587-1298	66 °C	-29 °C				Gasket	D-Shape					12.37 mm	0.487 in	0.324 in	8.23 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	100	$ 19.48

General part information

RF EMI Gasket CHO-SEAL® 1298 Silicone Elastomer 0.246" (6.25mm) X 12.000" (304.80mm) X 0.146" (3.68mm)
