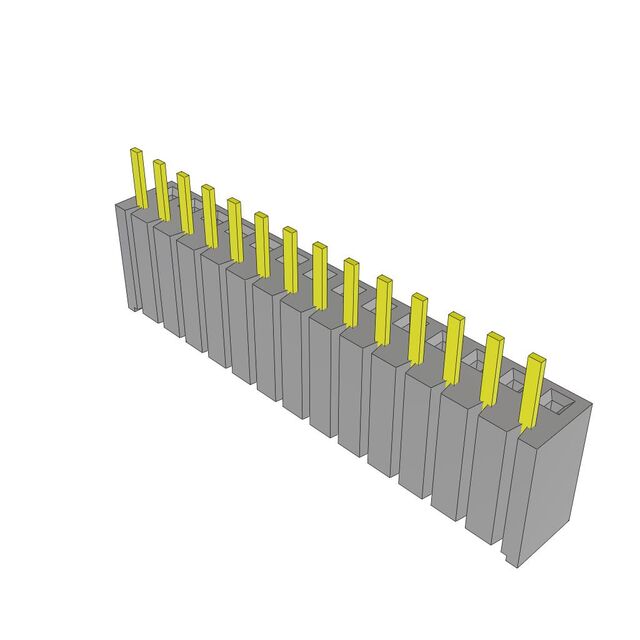

BSW-114-04-T-S - BSW-114-04-T-S

BSW-114-04-T-S

Active
Samtec Inc.

CONN RCPT 14POS 0.1 TIN PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet.100" Bottom Entry Socket Strip+1
BSW-114-04-T-S - BSW-114-04-T-S

BSW-114-04-T-S

Active
Samtec Inc.

CONN RCPT 14POS 0.1 TIN PCB

Deep-Dive with AI

DocumentsDatasheet.100" Bottom Entry Socket Strip+1

Technical Specifications

Parameters and characteristics for this part

SpecificationBSW-114-04-T-S
Connector TypeBreakaway, Receptacle
Contact Finish - PostTin
Contact Length - Post4.32 mm
Contact Length - Post0.17 in
Contact MaterialPhosphor Bronze
Contact ShapeSquare
Contact TypeFemale Socket
Fastening TypePush-Pull
Insulation ColorBlack
Insulation Height [custom]0.35 in
Insulation Height [custom]8.89 mm
Insulation MaterialPolyethylene Terephthalate (PET), Glass Filled
Material Flammability RatingUL94 V-0
Mounting TypeThrough Hole, Bottom Mount
Number of Positions14
Number of Positions LoadedAll
Number of Rows1
Operating Temperature [Max]105 ░C
Operating Temperature [Min]-55 °C
Pitch - Mating0.1 in
Pitch - Mating2.54 mm
TerminationSolder

BSW-114 Series

PartInsulation ColorConnector TypeContact TypeFastening TypeNumber of PositionsPitch - MatingPitch - MatingContact Length - PostContact Length - PostOperating Temperature [Max]Operating Temperature [Min]Material Flammability RatingNumber of Positions LoadedMounting TypeContact MaterialNumber of RowsInsulation Height [custom]Insulation Height [custom]TerminationContact Finish - PostInsulation MaterialContact ShapeContact Finish Thickness - MatingContact Finish Thickness - MatingContact Finish - MatingRow Spacing - Mating [x]Row Spacing - Mating [x]Contact Length - Post [x]Contact Length - Post [x]
Samtec Inc.
BSW-114-04-T-S
Black
Breakaway
Receptacle
Female Socket
Push-Pull
14
0.1 in
2.54 mm
4.32 mm
0.17 in
105 ░C
-55 °C
UL94 V-0
All
Bottom Mount
Through Hole
Phosphor Bronze
1
0.35 in
8.89 mm
Solder
Tin
Polyethylene Terephthalate (PET)
Glass Filled
Square
Samtec Inc.
BSW-114-24-G-S
Black
Breakaway
Receptacle
Female Socket
Push-Pull
14
0.1 in
2.54 mm
4.32 mm
0.17 in
125 °C
-55 °C
UL94 V-0
All
Bottom Mount
Through Hole
Phosphor Bronze
1
0.35 in
8.89 mm
Solder
Tin
Polyethylene Terephthalate (PET)
Glass Filled
Square
0.51 µm
20 µin
Gold
Samtec Inc.
BSW-114-04-L-S
Black
Breakaway
Receptacle
Female Socket
Push-Pull
14
0.1 in
2.54 mm
4.32 mm
0.17 in
125 °C
-55 °C
UL94 V-0
All
Bottom Mount
Through Hole
Phosphor Bronze
1
0.35 in
8.89 mm
Solder
Tin
Polyethylene Terephthalate (PET)
Glass Filled
Square
0.25 çm
10 çin
Gold
Samtec Inc.
BSW-114-04-L-D
Black
Breakaway
Receptacle
Female Socket
Push-Pull
28
0.1 in
2.54 mm
125 °C
-55 °C
UL94 V-0
All
Bottom Mount
Through Hole
Phosphor Bronze
2
0.35 in
8.89 mm
Solder
Tin
Polyethylene Terephthalate (PET)
Glass Filled
Square
0.25 çm
10 çin
Gold
2.54 mm
0.1 in
0.165 in
4.19 mm
Samtec Inc.
BSW-114-24-G-D
Black
Breakaway
Receptacle
Female Socket
Push-Pull
28
0.1 in
2.54 mm
125 °C
-55 °C
UL94 V-0
All
Bottom Mount
Through Hole
Phosphor Bronze
2
0.35 in
8.89 mm
Solder
Tin
Polyethylene Terephthalate (PET)
Glass Filled
Square
0.51 µm
20 µin
Gold
2.54 mm
0.1 in
0.165 in
4.19 mm
Samtec Inc.
BSW-114-04-G-S
Black
Breakaway
Receptacle
Female Socket
Push-Pull
14
0.1 in
2.54 mm
4.32 mm
0.17 in
125 °C
-55 °C
UL94 V-0
All
Bottom Mount
Through Hole
Phosphor Bronze
1
0.35 in
8.89 mm
Solder
Tin
Polyethylene Terephthalate (PET)
Glass Filled
Square
0.51 µm
20 µin
Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 3.51
LCSCPiece 1$ 7.30
192$ 2.91
496$ 2.82
992$ 2.77

Description

General part information

BSW-114 Series

14 Position Receptacle, Breakaway Connector 0.100" (2.54mm) Through Hole, Bottom Mount Tin
