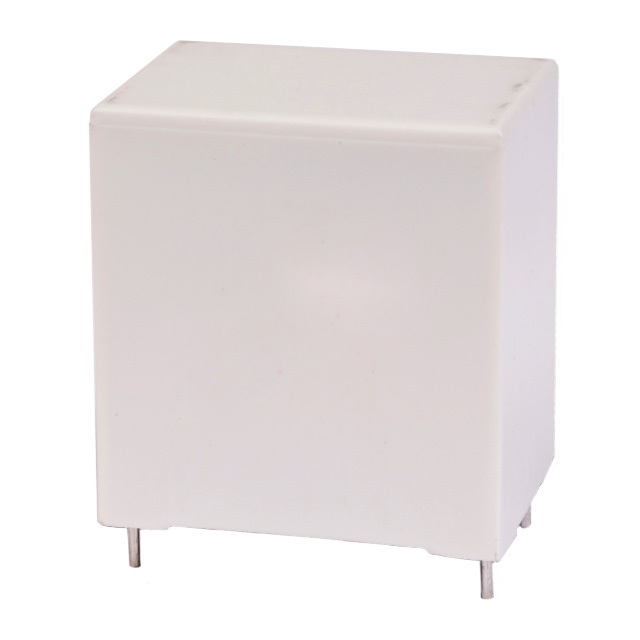

C4ATHBW4330A3GJ

Active

KEMET

CAP FILM 3.3UF 600V PP 5%( 32 X 22 X 37MM) RADIAL PLASTIC RECTANGULAR CAN 27.5MM 0.0024 OHM 85°C BULK

Search across all available documentation for this part.

Active

KEMET

CAP FILM 3.3UF 600V PP 5%( 32 X 22 X 37MM) RADIAL PLASTIC RECTANGULAR CAN 27.5MM 0.0024 OHM 85°C BULK

Technical Specifications

Parameters and characteristics for this part

Specification	C4ATHBW4330A3GJ

Applications	Switching, High Frequency, DC Filtering, DC Link
Capacitance	3.3 µF
Dielectric Material	Metallized, Polypropylene (PP)
ESR (Equivalent Series Resistance)	2.4 mOhms
Height - Seated (Max) [Max] [z]	37 mm
Height - Seated (Max) [Max] [z]	1.457 in
Lead Spacing	27.5 mm
Lead Spacing	1.083 in
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Radial - 4 Leads
Size / Dimension [x]	32 mm
Size / Dimension [x]	1.26 in
Size / Dimension [y]	0.866 in
Size / Dimension [y]	22 mm
Termination	PC Pins
Tolerance	5 %
Voltage Rating - AC	350 V
Voltage Rating - DC	600 V

Part	Capacitance	Dielectric Material	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - DC	Tolerance	Lead Spacing	Lead Spacing	Mounting Type	ESR (Equivalent Series Resistance)	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Voltage Rating - AC	Applications	Termination
KEMET C4ATHBW4330A3GJ	3.3 µF	Metallized Polypropylene (PP)	Radial - 4 Leads	37 mm	1.457 in	85 °C	-40 °C	600 V	5 %	27.5 mm	1.083 in	Through Hole	2.4 mOhms	0.866 in	32 mm	22 mm	1.26 in	350 V	DC Filtering DC Link High Frequency Switching	PC Pins
KEMET C4ATHBW5100A3LJ	10 µF	Metallized Polypropylene (PP)	Radial - 4 Leads	45 mm	1.772 in	85 °C	-40 °C	600 V	5 %	37.5 mm	1.476 in	Through Hole	1.8 mOhm	1.181 in	42 mm	30 mm	1.654 in	350 V	DC Filtering DC Link High Frequency Switching	PC Pins

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3.3 µF Film Capacitor 350V 600V Polypropylene (PP), Metallized Radial - 4 Leads
