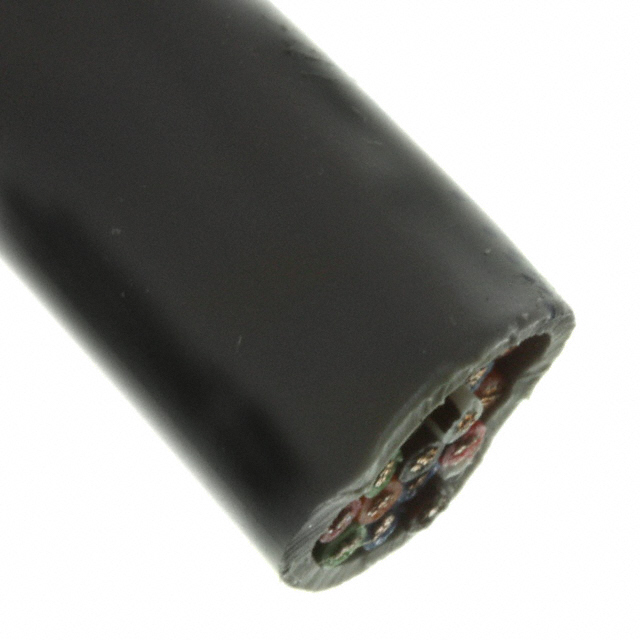

C0767A.38.10

Active

Prysmian Group

CABLE 20COND 22AWG GRAY SHLD

Search across all available documentation for this part.

Active

Prysmian Group

CABLE 20COND 22AWG GRAY SHLD

Technical Specifications

Parameters and characteristics for this part

Specification	C0767A.38.10

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Annealed Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	8.51 mm
Jacket (Insulation) Diameter [diameter]	0.335 "
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Gray
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	20
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Ratings	ASTM B-33
Shield Coverage	100 %
Shield Material	Flexfoil®
Shield Type	Foil
Usage	Computer
Voltage	300 V
Wire Gauge	22 AWG

Part	Conductor Material	Jacket (Insulation) Material	Conductor Strand [custom]	Conductor Strand [custom]	Voltage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Features	Shield Material	Jacket Color	Conductor Insulation	Number of Conductors	Usage	Ratings	Operating Temperature [Min]	Operating Temperature [Max]	Wire Gauge	Cable Type	Shield Type	Shield Coverage	Length	Length	Length [x]	Length [x]
Prysmian Group C0767A.41.10	Copper Annealed Tinned	Poly-Vinyl Chloride (PVC)	7	30 AWG	300 V	8.51 mm	0.335 "	Drain Wire	Flexfoil®	Gray	Poly-Vinyl Chloride (PVC)	20	Computer	ASTM B-33	-20 C	80 C	22 AWG	Multi-Conductor	Foil	100 %	1000 ft	304.8 m
Prysmian Group C0767A.38.10	Copper Annealed Tinned	Poly-Vinyl Chloride (PVC)	7	30 AWG	300 V	8.51 mm	0.335 "	Drain Wire	Flexfoil®	Gray	Poly-Vinyl Chloride (PVC)	20	Computer	ASTM B-33	-20 C	80 C	22 AWG	Multi-Conductor	Foil	100 %			500 '	152.4 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	25000	$ 2.55

General part information

20 Conductor Multi-Conductor Cable Gray 22 AWG Foil 500.0' (152.4m)

Technical documentation and resources

No documents available
