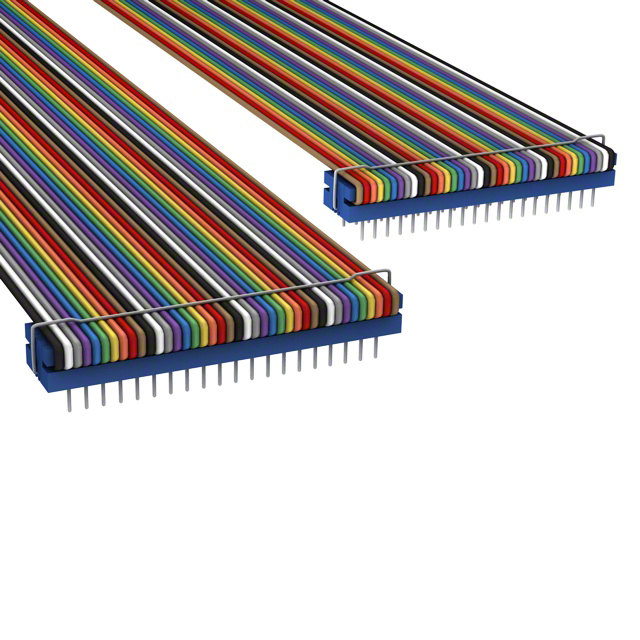

C6RRS-4036M

Active

CW Industries

DIP CABLE - CDR40S/AE40M/CDR40S

Search across all available documentation for this part.

Active

CW Industries

DIP CABLE - CDR40S/AE40M/CDR40S

Technical Specifications

Parameters and characteristics for this part

Part	Cable Termination	Color	Usage	Contact Finish Thickness	Contact Finish Thickness	Features	Contact Finish	Pitch - Cable	Pitch - Cable	Number of Positions	Number of Rows	Shielding	Length	Length	Length	Connector Type	Pitch - Connector	Pitch - Connector	Length [x]	Length [x]
CW Industries C6RRS-4006M	IDC	Multiple Ribbon	Board In Socket (0.6")	2.54 µm	100 µin	Strain Relief	Tin	0.05 "	1.27 mm	40	2	Unshielded	152.4 mm	6 "	0.5 '	DIP to DIP	0.1 in	2.54 mm
CW Industries C6RRS-4036M	IDC	Multiple Ribbon	Board In Socket (0.6")	2.54 µm	100 µin	Strain Relief	Tin	0.05 "	1.27 mm	40	2	Unshielded				DIP to DIP	0.1 in	2.54 mm	3 ft	914.4 mm
CW Industries C6RRS-4006G	IDC		Board In Socket (0.6")	2.54 µm	100 µin	Strain Relief	Tin	0.05 "	1.27 mm	40	2	Unshielded	152.4 mm	6 "	0.5 '	DIP to DIP	0.1 in	2.54 mm
CW Industries C6RRS-4018G	IDC		Board In Socket (0.6")	2.54 µm	100 µin	Strain Relief	Tin	0.05 "	1.27 mm	40	2	Unshielded				DIP to DIP	0.1 in	2.54 mm	1.5 ft	457.2 mm
CW Industries C6RRS-4036G	IDC		Board In Socket (0.6")	2.54 µm	100 µin	Strain Relief	Tin	0.05 "	1.27 mm	40	2	Unshielded				DIP to DIP	0.1 in	2.54 mm	3 ft	914.4 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

40 Position Cable Assembly Rectangular DIP to DIP 3.00' (914.40mm)

Technical documentation and resources
