1819192

Active

Phoenix Contact

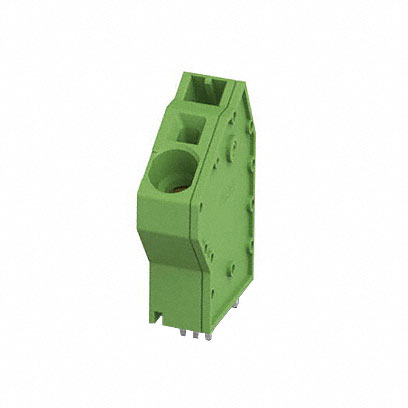

FIXED TERMINAL BLOCKS SPTA 16/1-10,0

Search across all available documentation for this part.

Active

Phoenix Contact

FIXED TERMINAL BLOCKS SPTA 16/1-10,0

Technical Specifications

Parameters and characteristics for this part

Specification	1819192

Color	Green
Contact Material - Plating [custom]	Tin Plated
Current	66 A
Housing Material	Polyamide (PA), Nylon
Mating Orientation	150 °
Mating Orientation	30 °
Mounting Type	Through Hole
Number of Levels	1
Positions Per Level	1
Voltage	300 V
Wire Gauge [Max]	18 AWG
Wire Gauge [Min]	4 AWG
Wire Termination	Screwless - Spring Cage, Tension Clamp

Fixed Terminal Blocks SPTA 16/1-10,0

Part	Mounting Type	Number of Levels	Housing Material	Current	Positions Per Level	Contact Material - Plating [custom]	Mating Orientation	Mating Orientation	Color	Voltage	Wire Gauge [Min]	Wire Gauge [Max]	Wire Termination
Phoenix Contact 1819192	Through Hole	1	Polyamide (PA) Nylon	66 A	1	Tin Plated	150 °	30 °	Green	300 V	4 AWG	18 AWG	Screwless - Spring Cage Tension Clamp

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fixed Terminal Blocks SPTA 16/1-10,0

Technical documentation and resources
