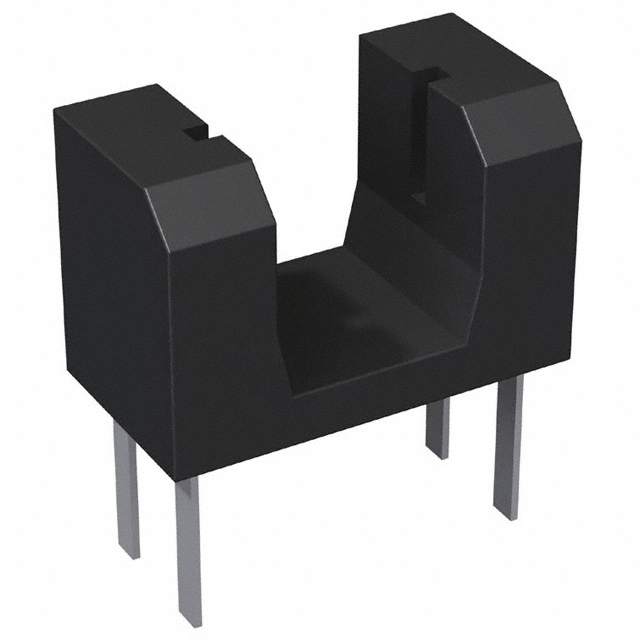

RPI-441C1E

Active

Rohm Semiconductor

PHOTO INTERRUPTER, 1.4V, 0.35A, 4X0.5MM ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Rohm Semiconductor

PHOTO INTERRUPTER, 1.4V, 0.35A, 4X0.5MM ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	RPI-441C1E

Current - Collector (Ic) (Max) [Max]	30 mA
Current - DC Forward (If) (Max)	50 mA
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Output Configuration	Transistor
Package / Case	Module, PC Pins, Slot Type
Response Time	10 µs
Sensing Distance	4 mm
Sensing Distance	0.157 in
Type	Unamplified
Voltage - Collector Emitter Breakdown (Max) [Max]	30 V

Photointerrupter Power Saving Type

Part	Output Configuration	Package / Case	Current - Collector (Ic) (Max) [Max]	Sensing Distance	Sensing Distance	Mounting Type	Current - DC Forward (If) (Max)	Response Time	Operating Temperature [Min]	Operating Temperature [Max]	Type	Voltage - Collector Emitter Breakdown (Max) [Max]
Rohm Semiconductor RPI-441C1E	Transistor	Module PC Pins Slot Type	30 mA	4 mm	0.157 in	Through Hole	50 mA	10 µs	-25 °C	85 °C	Unamplified	30 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

ROHM's optical sensors serve as eyes to monitor changes of any motions, and comply with customer's day-to-day diversifying requests.
