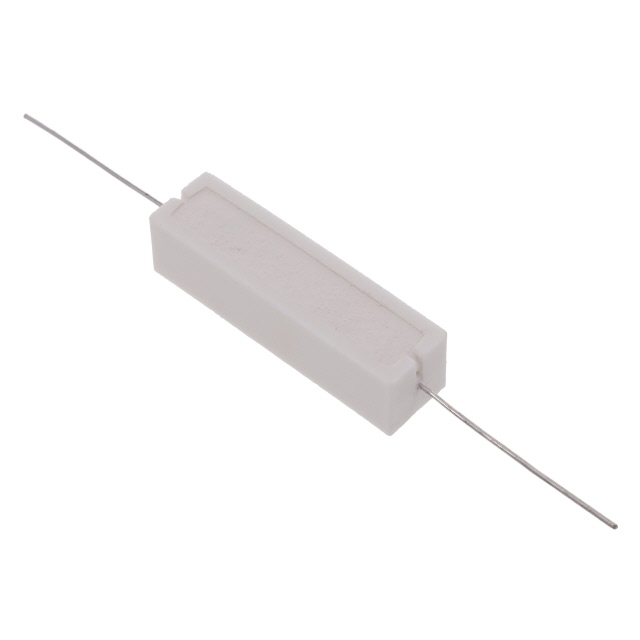

SQPW1533RJ
ActiveTE Connectivity Passive Product
RES 33 OHM 5% 15W AXIAL
Deep-Dive with AI
Search across all available documentation for this part.
SQPW1533RJ
ActiveTE Connectivity Passive Product
RES 33 OHM 5% 15W AXIAL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SQPW1533RJ |
|---|---|
| Composition | Wirewound |
| Features | Safety, Flame Proof, Moisture Resistant |
| Number of Terminations | 2 |
| Operating Temperature [Max] | 250 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Axial |
| Power (Watts) | 15 W |
| Resistance | 33 Ohms |
| Size / Dimension [x] | 12.5 mm |
| Size / Dimension [x] | 0.492 in |
| Size / Dimension [y] | 11.5 mm |
| Size / Dimension [y] | 0.453 in |
| Size / Dimension [z] | 48 mm |
| Size / Dimension [z] | 1.89 " |
| Supplier Device Package | Axial |
| Temperature Coefficient | 300 ppm/°C |
| Tolerance | 5 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.23 | |
| 10 | $ 1.03 | |||
| 100 | $ 0.75 | |||
| 1000 | $ 0.47 | |||
| 5000 | $ 0.45 | |||
| 10000 | $ 0.44 | |||
Description
General part information
SQPW15 Series
33 Ohms ±5% 15W Through Hole Resistor Axial Flame Proof, Moisture Resistant, Safety Wirewound
