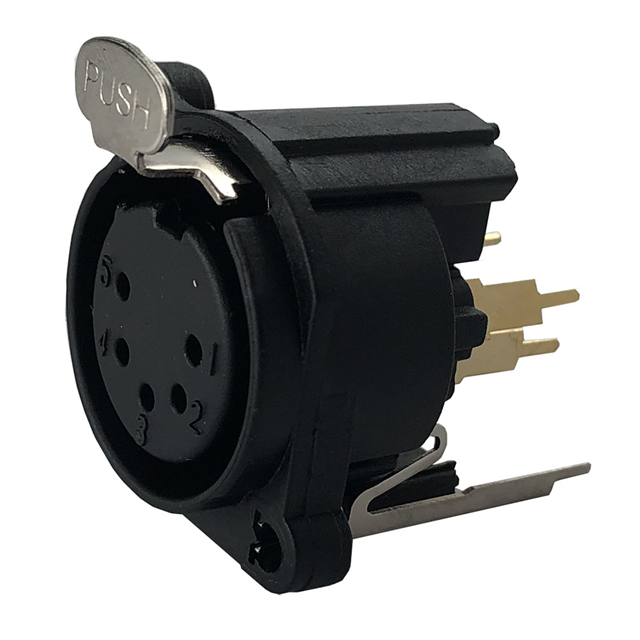

IO-XLR5-F-EV

Active

IO Audio Technologies

BRASS FEMALE GOLD 5P CIRCULAR CONNECTORS &AMP; CABLE CONNECTORS ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

IO-XLR5-F-EV

Active

IO Audio Technologies

BRASS FEMALE GOLD 5P CIRCULAR CONNECTORS &AMP; CABLE CONNECTORS ROHS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	IO-XLR5-F-EV

Applications	Audio, Video, Lighting Control, Medical
Color	Black
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Brass
Fastening Type	Latch Lock
Features	Board Guide, Ground
Insert Material	Nylon, Polyamide (PA)
Mounting Feature	Flange
Mounting Type	Through Hole, Panel Mount
Orientation	Keyed
Primary Material	Plastic
Shell Size - Insert	XLR
Shielding	Unshielded
Termination	Solder

IO-XLR5 Series

Part	Material Flammability Rating	Orientation	Current Rating (Amps)	Voltage Rating	Contact Finish - Mating	Features	Color	Applications	Termination	Fastening Type	Shell Size - Insert	Insert Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Primary Material	Mounting Feature	Shielding	Mounting Type	Connector Type	Shell Material	Backshell Material, Plating	Shell Finish
IO Audio Technologies IO-XLR5-F-BH	UL94 HB	Keyed	3 A	50 VAC	Gold	Board Guide Board Lock Ground	Black Silver	Audio Lighting Control	Solder	Latch Lock	XLR	Nylon Polyamide (PA)	-40 °C	70 °C	Brass	1.97 Áin	0.05 Ám	Plastic	Flange	Unshielded	Panel Mount Right Angle Through Hole	Receptacle Female Sockets
IO Audio Technologies IO-XLR5-F-EV		Keyed			Gold	Board Guide Ground	Black	Audio Lighting Control Medical Video	Solder	Latch Lock	XLR	Nylon Polyamide (PA)			Brass			Plastic	Flange	Unshielded	Panel Mount Through Hole	Receptacle Female Sockets
IO Audio Technologies IO-XLR5-F-EH		Keyed			Gold	Board Guide Board Lock Ground	Black	Audio Lighting Control Medical Video	Solder	Latch Lock	XLR	Nylon Polyamide (PA)			Brass			Plastic	Flange	Unshielded	Panel Mount Right Angle Through Hole	Receptacle Female Sockets
IO Audio Technologies IO-XLR5-M-BH	UL94 HB	Keyed	3 A	50 VAC	Gold	Board Guide Board Lock Ground	Black Silver	Audio Lighting Control	Solder	Latch Lock	XLR	Nylon Polyamide (PA)	-40 °C	70 °C	Brass	1.97 Áin	0.05 Ám	Plastic	Flange	Unshielded	Panel Mount Right Angle Through Hole	Male Pins Receptacle
IO Audio Technologies IO-XLR5-F-BK			7.5 A	1500 VAC	Silver	Backshell Strain Relief	Black	Audio		Latch Lock	XLR				Phosphor Bronze			Metal		Unshielded	Free Hanging (In-Line)	Female Sockets Plug	Zinc Die Cast	Zinc Die Cast
IO Audio Technologies IO-XLR5-F-BK-JL		Keyed	7.5 A	125 VAC	Silver	Ground	Black	Audio Lighting Control Medical Video		Latch Lock	XLR	Nylon Polyamide (PA)			Phosphor Bronze			Metal	Flange	Shielded		Receptacle Female Sockets	Zinc Die Cast		Black
IO Audio Technologies IO-XLR5-M-BK-JL		Keyed	7.5 A	125 VAC	Silver	Ground	Black	Audio Lighting Control Medical Video		Latch Lock	XLR	Nylon Polyamide (PA)			Phosphor Bronze			Metal	Flange	Shielded		Male Pins Receptacle	Zinc Die Cast		Black
IO Audio Technologies IO-XLR5-F-JLX		Keyed	7.5 A	125 VAC	Silver	Ground	Silver	Audio Lighting Control Medical Video		Latch Lock	XLR	Nylon Polyamide (PA)			Phosphor Bronze			Metal	Flange	Shielded		Receptacle Female Sockets	Zinc Die Cast		Nickel
IO Audio Technologies IO-XLR5-M-BKAU			7.5 A	125 VAC	Gold	Backshell Strain Relief	Black	Audio Lighting Control		Latch Lock	XLR	Plastic			Phosphor Bronze	1.97 Áin	0.05 Ám	Metal		Unshielded	Free Hanging (In-Line)	Male Pins Receptacle	Zinc Die Cast	Zinc Die Cast
IO Audio Technologies IO-XLR5-M-JL		Keyed	7.5 A	125 VAC	Silver	Ground	Silver	Audio Lighting Control Medical Video		Latch Lock	XLR	Nylon Polyamide (PA)			Phosphor Bronze			Metal	Flange	Shielded		Male Pins Receptacle	Zinc Die Cast		Nickel

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.79
		10	$ 3.44
		25	$ 3.26
		50	$ 3.18
		100	$ 3.03
		250	$ 2.65
		500	$ 2.58
		1000	$ 2.20
		2500	$ 2.05
LCSC	Piece	1	$ 5.31
		200	$ 2.12
		500	$ 2.05
		1000	$ 2.01

Description

General part information

IO-XLR5 Series

5 Position Circular Connector Receptacle, Female Sockets Solder
