903-505J-51S

Active

Amphenol RF

CONN SMB JACK STR 50 OHM CRIMP

Search across all available documentation for this part.

Active

Amphenol RF

CONN SMB JACK STR 50 OHM CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	903-505J-51S

Body Finish	Gold
Body Material	Brass
Cable Group	RG-174, 188, 188A, 316
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SMB
Connector Type	Male Pin, Jack
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	4 GHz
Housing Color	Gold
Impedance	50 Ohms

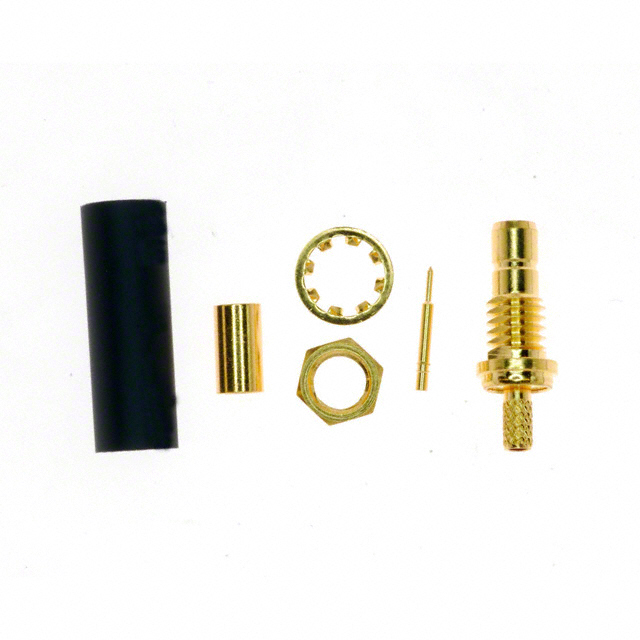

Includes	1 Nut, 1 Heat Shrink, 1 Ferrule, 1 Contact, 1 Connector, 1 Lockwasher
Insertion Loss	0.3 dB
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp

Part	Mating Cycles	Body Material	Impedance	Center Contact Plating	Mounting Feature	Fastening Type	Includes	Connector Style	Number of Ports	Operating Temperature [Min]	Operating Temperature [Max]	Center Contact Material	Insertion Loss	Frequency - Max [Max]	Connector Type	Dielectric Material	Shield Termination	Contact Termination	Housing Color	Body Finish	Cable Group
Amphenol RF 903-505J-51S	500	Brass	50 Ohms	Gold	Bulkhead - Front Side Nut	Snap-On	1 Connector 1 Contact 1 Ferrule 1 Heat Shrink 1 Lockwasher 1 Nut	SMB	1	-65 ░C	165 °C	Brass	0.3 dB	4 GHz	Jack Male Pin	Polytetrafluoroethylene (PTFE)	Crimp	Crimp	Gold	Gold	188 188A 316 RG-174

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMB Connector Jack, Male Pin 50 Ohms Panel Mount Crimp
