346-039-559-102

Active

EDAC Inc.

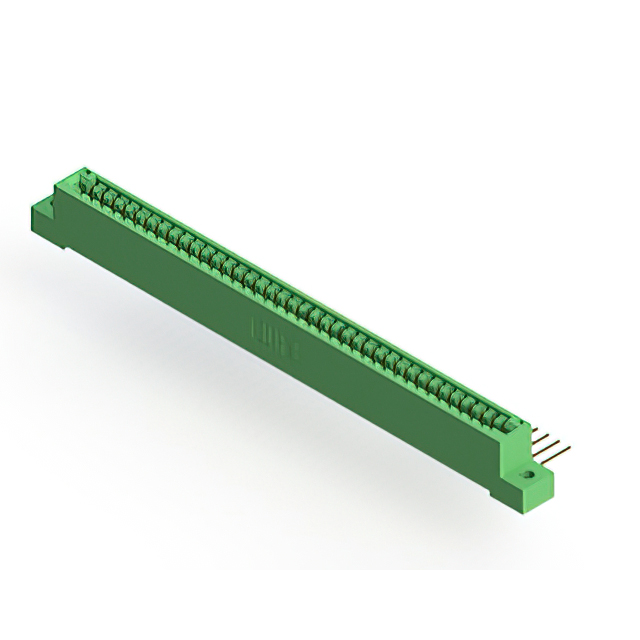

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 39 CONTACTS, THROUGH HOLE MOUNT, RIGHT ANGLE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Enhanced Product Overview EN +1

346-039-559-102

Active

EDAC Inc.

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 39 CONTACTS, THROUGH HOLE MOUNT, RIGHT ANGLE

Deep-Dive with AI

DocumentsDatasheet Enhanced Product Overview EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	346-039-559-102

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Flush Mount, Top Opening, Unthreaded
Flange Feature [diameter]	3.25 mm
Flange Feature [diameter]	0.128 "
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole, Right Angle
Number of Positions	39
Number of Positions/Bay/Row [custom]	39
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.125 in
Pitch [x]	3.18 mm
Read Out	Single
Termination	Wire Wrap, Solder
Termination Rows	1

346-039 Series

...

Part	Card Type	Pitch [x]	Pitch [x]	Number of Positions	Contact Material	Termination Rows	Termination	Mounting Type	Contact Type	Read Out	Material - Insulation	Contact Finish	Flange Feature [diameter]	Flange Feature [diameter]	Flange Feature	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Gender	Number of Positions/Bay/Row [custom]	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Color	Operating Temperature [Min]	Operating Temperature [Max]	Features	Flange Feature	Flange Feature
EDAC Inc. 346-039-559-102	Non Specified - Single Edge	0.125 in	3.18 mm	39	Copper Alloy	1	Solder Wire Wrap	Through Hole Right Angle	Cantilever	Single	Polyester Thermoplastic	Gold	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded	10 Áin	0.25 Ám	1	Female	39	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	-40 °C	105 ░C
EDAC Inc. 346-039-541-102	Non Specified - Single Edge	0.125 in	3.18 mm	39	Copper Alloy	1	Wire Wrap	Through Hole	Cantilever	Single	Polyester Thermoplastic	Gold	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded	10 Áin	0.25 Ám	1	Female	39	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	-40 °C	105 ░C
EDAC Inc. 346-039-558-103	Non Specified - Single Edge	0.125 in	3.18 mm	39	Copper Alloy	1	Solder Wire Wrap	Through Hole Right Angle	Cantilever	Single	Polyester Thermoplastic	Gold	2.95 mm	0.116 in	Floating Bobbin Flush Mount	10 Áin	0.25 Ám	1	Female	39	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	-40 °C	105 ░C
EDAC Inc. 346-039-521-678	Non Specified - Single Edge	0.125 in	3.18 mm	39	Copper Alloy	1	Solder	Through Hole	Cantilever	Single	Polyester Thermoplastic	Gold			4-40 Threaded Insert Top Mount Opening	10 Áin	0.25 Ám	1	Female	39	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	-40 °C	105 ░C	Card Guides
EDAC Inc. 346-039-541-107	Non Specified - Single Edge	0.125 in	3.18 mm	39	Copper Alloy	1	Wire Wrap	Through Hole	Cantilever	Single	Polyester Thermoplastic	Gold			Flush Mount M3 Threaded Insert Top Opening	10 Áin	0.25 Ám	1	Female	39	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	-40 °C	105 ░C
EDAC Inc. 346-039-558-158	Non Specified - Single Edge	0.125 in	3.18 mm	39	Copper Alloy	1	Solder Wire Wrap	Through Hole Right Angle	Cantilever	Single	Polyester Thermoplastic	Gold			4-40 Flush Mount Threaded Insert Top Opening	10 Áin	0.25 Ám	1	Female	39	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	-40 °C	105 ░C	Card Guides
EDAC Inc. 346-039-558-612	Non Specified - Single Edge	0.125 in	3.18 mm	39	Copper Alloy	1	Solder Wire Wrap	Through Hole Right Angle	Cantilever	Single	Polyester Thermoplastic	Gold			Side Mount Opening Unthreaded	10 Áin	0.25 Ám	1	Female	39	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	-40 °C	105 ░C		3.25 mm	0.128 in
EDAC Inc. 346-039-520-608	Non Specified - Single Edge	0.125 in	3.18 mm	39	Copper Alloy	1	Solder	Through Hole	Cantilever	Single	Polyester Thermoplastic	Gold			4-40 Threaded Insert Top Mount Opening	10 Áin	0.25 Ám	1	Female	39	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	-40 °C	105 ░C
EDAC Inc. 346-039-540-101	Non Specified - Single Edge	0.125 in	3.18 mm	39	Copper Alloy	1	Wire Wrap	Through Hole	Cantilever	Single	Polyester Thermoplastic	Gold				10 Áin	0.25 Ám	1	Female	39	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	-40 °C	105 ░C
EDAC Inc. 346-039-559-602	Non Specified - Single Edge	0.125 in	3.18 mm	39	Copper Alloy	1	Solder Wire Wrap	Through Hole Right Angle	Cantilever	Single	Polyester Thermoplastic	Gold				10 Áin	0.25 Ám	1	Female	39	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	-40 °C	105 ░C		3.25 mm	0.128 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 10.96
Newark	Each	25	$ 11.29
		50	$ 10.72
		100	$ 10.14
		250	$ 9.56

Description

General part information

346-039 Series

39 Position Female Connector Non Specified - Single Edge Gold 0.125" (3.18mm) Green

Documents

Technical documentation and resources

Datasheet

Enhanced Product Overview EN

Datasheet

Drawing EN

Datasheet
