DS2788EVKIT+

Active

Analog Devices Inc./Maxim Integrated

EVAL KIT DS2788 (STAND-ALONE FUE

Search across all available documentation for this part.

Active

Analog Devices Inc./Maxim Integrated

EVAL KIT DS2788 (STAND-ALONE FUE

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case [custom]	Package / Case [custom]	Package / Case	Battery Chemistry	Supplier Device Package	Mounting Type	Interface	Number of Cells	Function	Utilized IC / Part	Type	Supplied Contents	Primary Attributes
Analog Devices Inc./Maxim Integrated DS2788E+	70 °C	-20 °C	0.173 "	4.4 mm	14-TSSOP	Lithium Ion/Polymer	14-TSSOP	Surface Mount	1-Wire	1	Battery Monitor
Analog Devices Inc./Maxim Integrated DS2788E+T&R	70 °C	-20 °C	0.173 "	4.4 mm	14-TSSOP	Lithium Ion/Polymer	14-TSSOP	Surface Mount	1-Wire	1	Battery Monitor
Analog Devices Inc./Maxim Integrated DS2788EVKIT+											Fuel Gauge	DS2788	Power Management	Board(s)	Li-Ion / Li-Pol (1 Cell)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

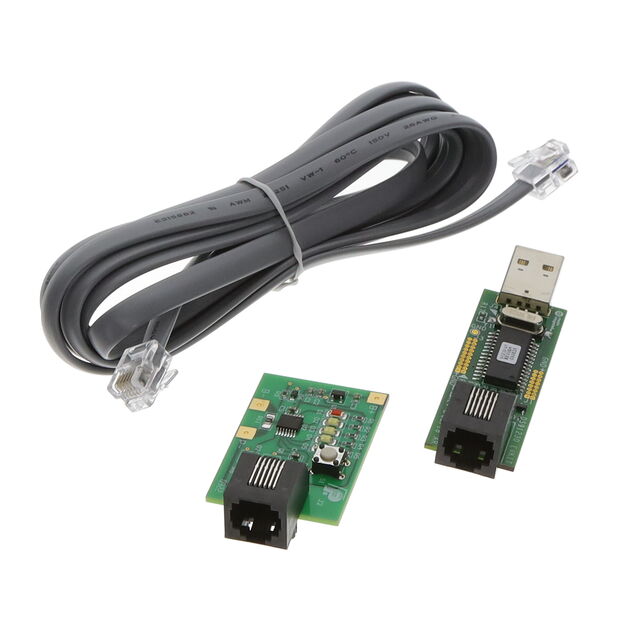

DS2788 Fuel Gauge Power Management Evaluation Board
